Power Steering Control Module (PSCM) Connector End View (C1463A)

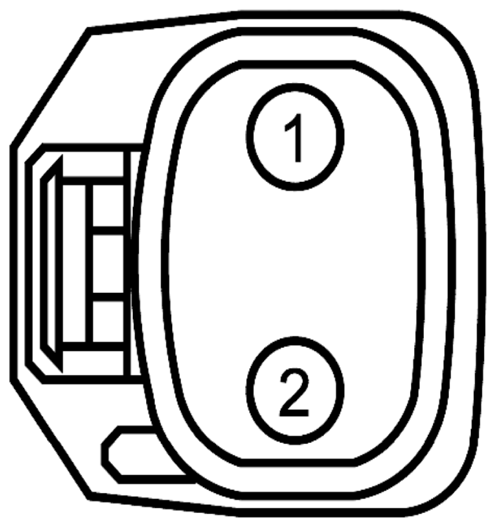

Fig 1: Identifying Power Steering Control Module Connector (C1463A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD108 (BK-VT)	4	GROUND - FENDER FRONT RIGHT # 3RD STUD
2	SDC02 (RD)	4	BATTERY - # PLUS
