HVAC Module, EMTC Connector End View (C294B)

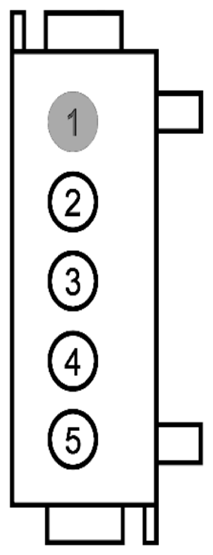

Fig 1: Identifying HVAC Module, EMTC Connector (C294B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CH426 (YE-OG)	10	SWITCH - FRONT BLOWER # POSITION 0 (OFF OR IDLE)
3	CH429 (GY-BN)	12	SWITCH - FRONT BLOWER # POSITION 3 (MEDIUM HIGH)
4	CH428 (GN-WH)	14	SWITCH - FRONT BLOWER # POSITION 2 (MEDIUM LOW)
5	GD138 (BK-WH)	10	GROUND - PILLAR A RIGHT
