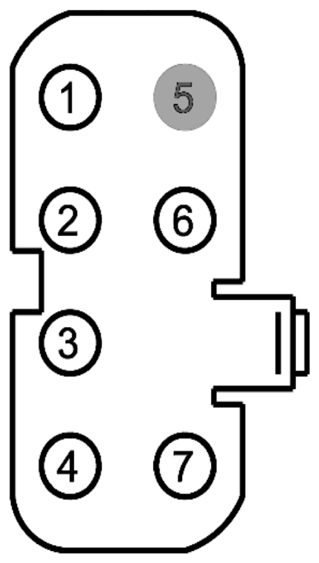

Passenger Door Window Control Switch Connector End View (C643)

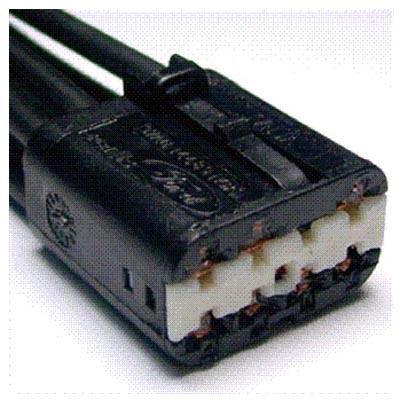

Fig 1: Identifying Passenger Door Window Control Switch Connector (C643)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW20 (WH)	12	SWITCH - POWER WINDOW FRONT RIGHT # UP	early production
1	CPW20 (WH-OG)	12	SWITCH - POWER WINDOW FRONT RIGHT # UP	late production
2	CBB16 (BU-GN)	12	FUSE OR CIRCUIT BREAKER
3	CPW12 (GN-OG)	12	SWITCH - POWER WINDOW FRONT RIGHT # DOWN
4	GD140 (BK-GN)	22	GROUND - PILLAR B RIGHT (6L2T)	early production
4	GD140 (BK-GN)	20	GROUND - PILLAR B RIGHT (6L2T)	late production
5	*	*	Not Used
6	CPW13 (BN-YE)	12	SWITCH - POWER WINDOW FRONT RIGHT # UP
7	CPW19 (VT-RD)	12	SWITCH - POWER WINDOW FRONT RIGHT # DOWN	early production
7	CPW19 (VT)	12	SWITCH - POWER WINDOW FRONT RIGHT # DOWN	late production

Available Pigtail Kits

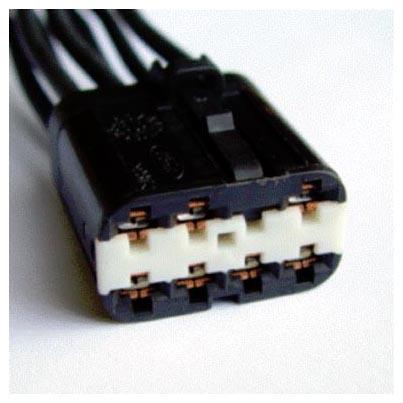

Pigtail Kit Part Number WPT-1267	Service Part Number: 3U2Z-14S411-PKB  Gauge: 14  Pin material: Tin (greased)  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Sliding Rear Window Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Traction Control
Pigtail Kit Part Number WPT-578	Service Part Number: 3U2Z-14S411-PKA  Gauge: 14  Pin material: Tin  Cavities: 7  Vehicle Uses Switch - Adjustable Pedal Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Heated Back Light (Rear Defrost) Switch - Power Window - Passenger (Front)
