Transmission Control Module (TCM): Removal
NOTE:
If removing the TCM
to install a new TCM, it is not necessary to remove the TCM
mounting bracket. If removing the TCM to service another component, it may be necessary to remove the TCM
mounting bracket.
- Disable the vehicle high-voltage electrical system.
Refer to: HIGH VOLTAGE BATTERY DISCONNECT AND CONNECT - HYBRID ELECTRIC VEHICLE (HEV) .
Refer to: HIGH VOLTAGE BATTERY DISCONNECT AND CONNECT - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV) .
- Refer to: AIR CLEANER
.
Refer to: AIR CLEANER OUTLET PIPE .
- Refer to: COWL PANEL
.
Refer to: ENGINE UNDERSHIELD .
- When installing the TCM, always connect the larger 40-pin connector first, then the smaller 24-pin connector. Make sure both connectors are fully inserted.
-

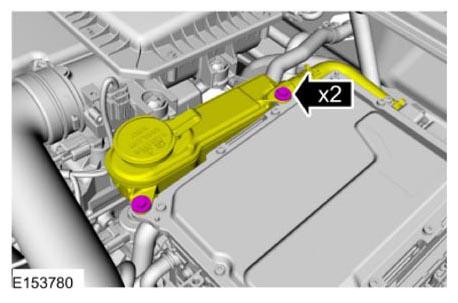

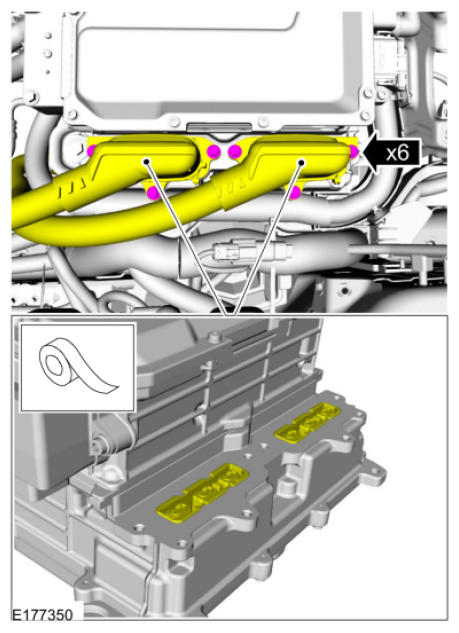

NOTE: When disconnecting the high voltage cables from the TCM, cover the TCM terminals with tape or another waterproof seal to keep moisture, water or other fluids from entering the TCM. Failure to cover and seal the TCM terminals can result in damage to the TCM.
Torque: 97 lb.in (11 Nm)
- Torque:
97 lb.in (11 Nm)
- Torque:
97 lb.in (11 Nm)
- Torque:
71 lb.in (8 Nm)
- Torque:
35 lb.ft (48 Nm)NOTE: TCM Mounting Bracket
- Torque:
Nuts: 177 lb.in (20 Nm)
Bolts: 30 lb.ft (40 Nm)
