Transmission Fluid Level Check: Check

Start the engine and allow to run for 1 minute. Turn engine off and wait 5 minutes.
Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: ENGINE UNDERSHIELD .

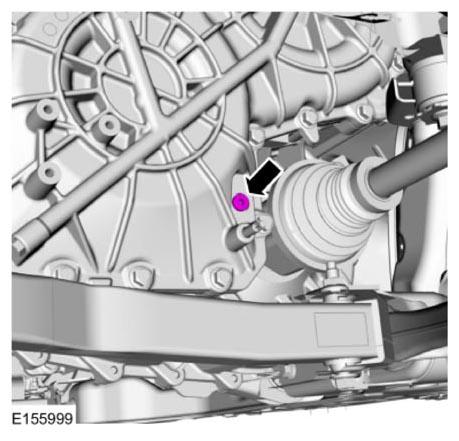

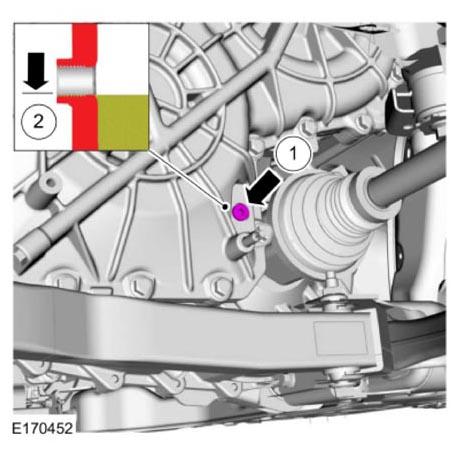

NOTE: The transmission fluid should be even with the bottom of the oil leveling plug hole.

Adding Additional Transmission Fluid

NOTE: The following procedure uses the Mityvac MITMV6412 ATF Refill System.

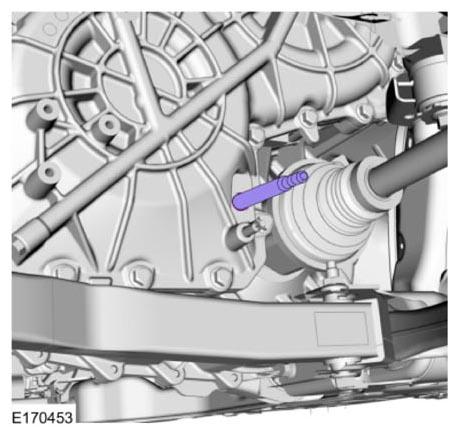

Select adapter MVA585 (M10 X 1.0) and install into oil leveling plug hole hand tight.
1. Material: Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.)/XT-10-QLVC (U.S.) (WSS-M2C938-A) (MERCON® LV)

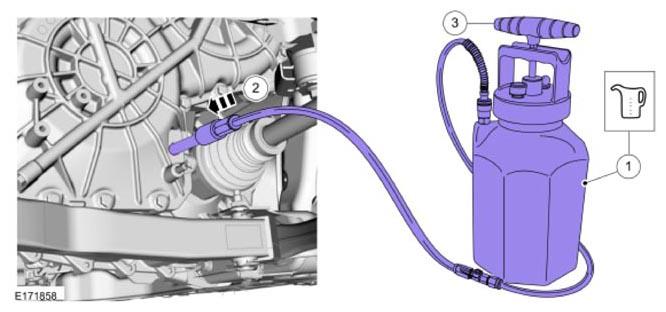

2. Connect the Mityvac MITMV6412.
3. Follow the manufacturer instructions to dispense the fluid into the transmission.

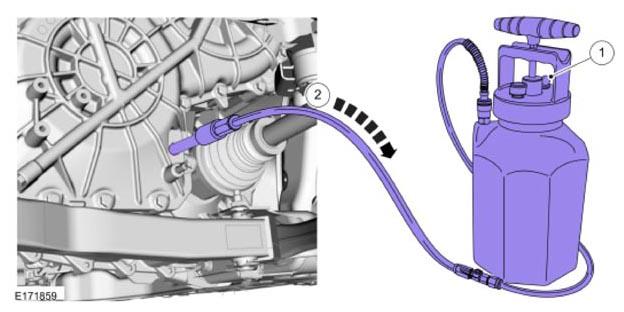

1. Release the pressure.
2. Allow all excess fluid to drain back into the canister.
Torque: 71 lb.in (8 Nm)

Refer to: ENGINE UNDERSHIELD .
