Ford
>>
2014
>>
C-Max Energi SEL
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Ground Distribution
>>
Grounds
>>
Notes
OEM Ground Distribution: Grounds: Notes

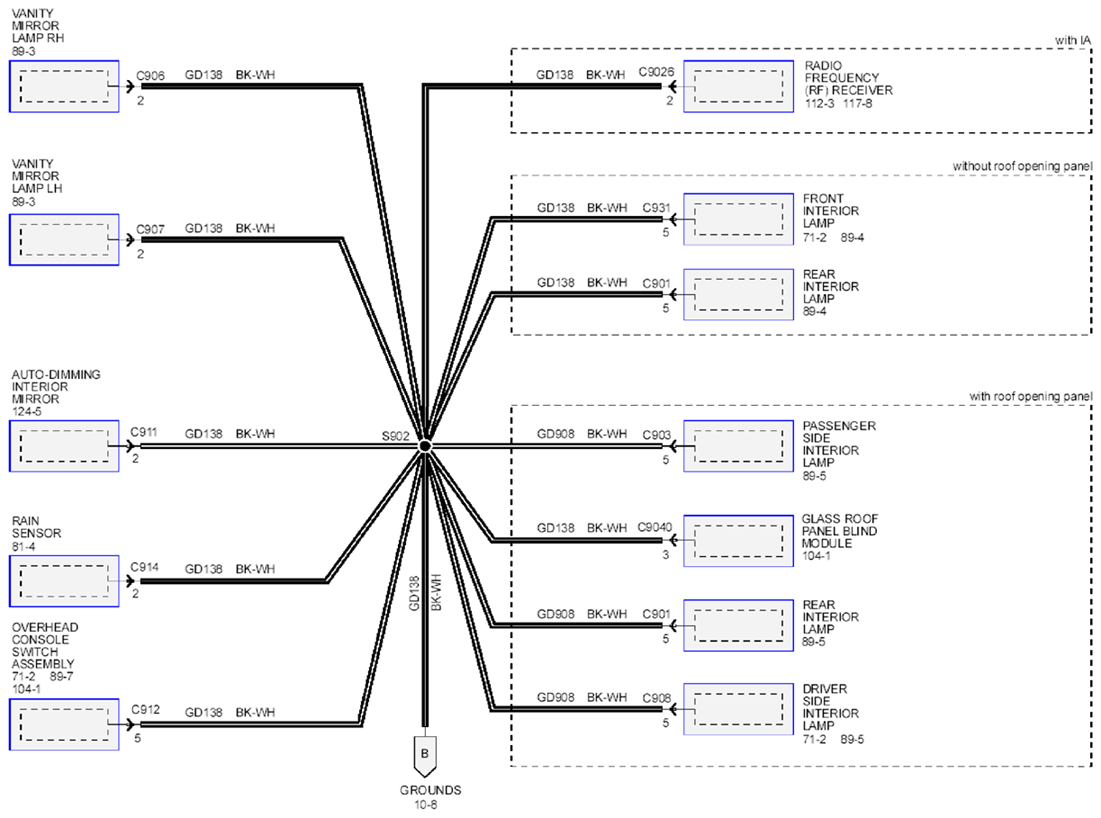

Fig 1: Grounds System - Wiring Diagram - (1 Of 2)
Courtesy of FORD MOTOR CO.

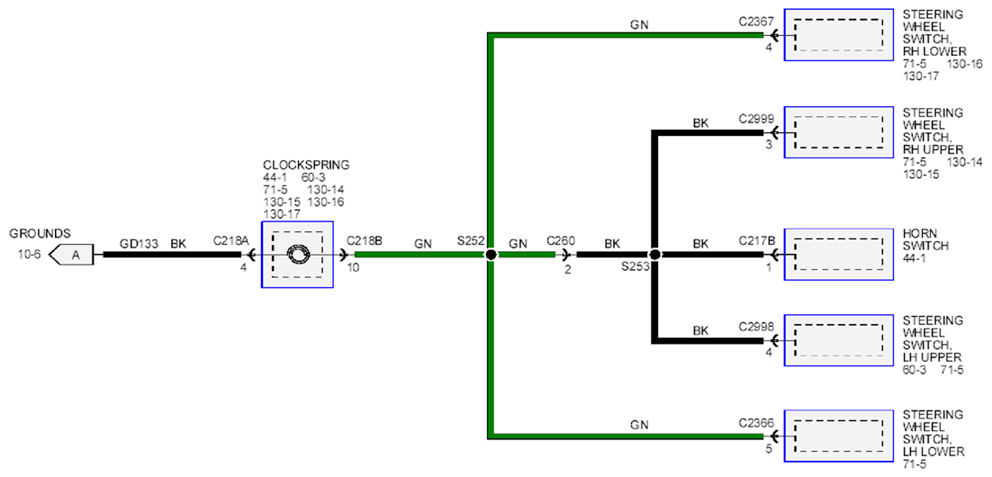

Fig 2: Grounds System - Wiring Diagram - (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
