Partially Mated Connectors

1 = Seal

2 = Displaced tab

3 = Female half

4 = Seal

5 = Intermittent contact

6 = Male half

7 = Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.

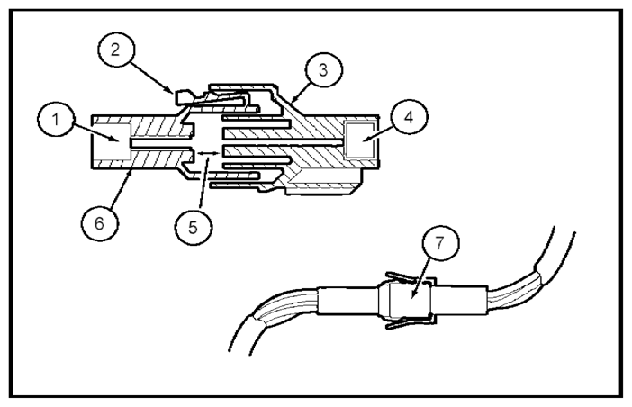

Fig 1: Cross Sectional View Of Connector Connection

Courtesy of FORD MOTOR CO.
