Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458G)

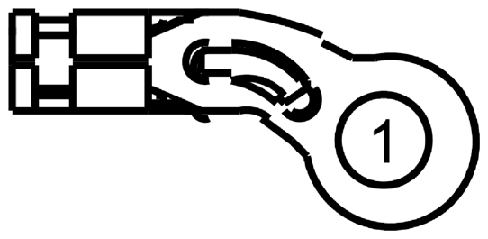

Fig 1: Identifying Secondary On Board Diagnostic Module C/Transmission Control Module Connector (C1458G)
G09431682Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SDC02 (RD) 16 BATTERY- # PLUS
