Multifunction Switch, Wiper/Washer Portion - Front: Schematic

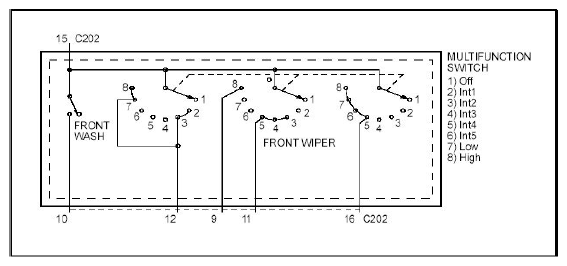

Fig 1: Multifunction Switch, Wiper/Washer Portion - Front Schematic

G09092215

Courtesy of FORD MOTOR CO.
