Transaxle Vent: Installation

Inspect the vent transaxle bore for damage or debris. Clean or repair as needed.
Install the vent assembly in the transaxle bore.

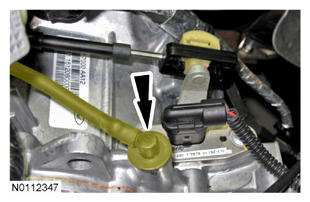

Fig 1: Locating Transaxle Bore Vent Assembly
Courtesy of FORD MOTOR CO.
NOTE: Make sure the transaxle vent hose is properly routed or damage can occur.

Install the vent assembly end onto the cooling fan housing.

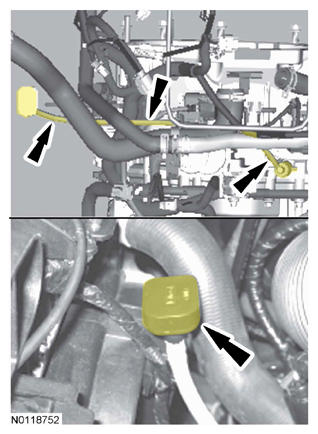

Fig 2: Locating Cooling Fan Housing
Courtesy of FORD MOTOR CO.
Install the ACL assembly and outlet pipe. For additional Information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
Install the battery tray and battery. For additional Information, refer to BATTERY AND BATTERY TRAY -- EXPLODED VIEW .
