Home >> Ford >> 2013 >> Explorer Police Interceptor, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams >> Power Windows >> Notes

Power Windows: Notes

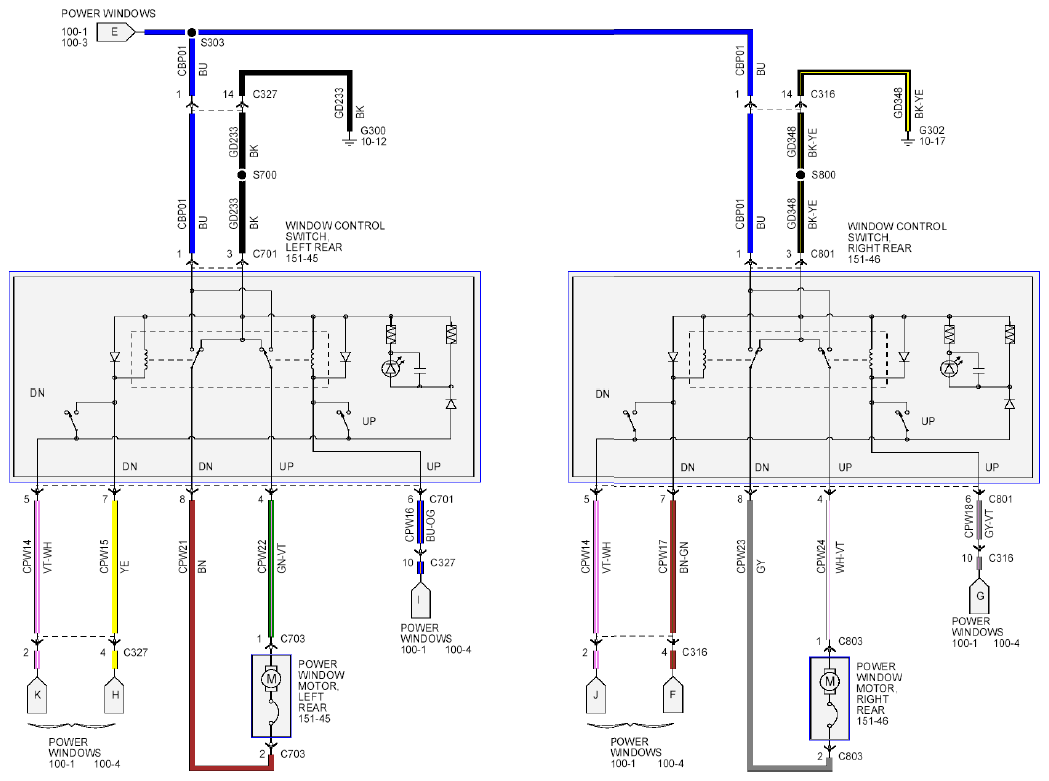

Fig 1: Power Windows - Wiring Diagram

G08748526

Courtesy of FORD MOTOR CO.
