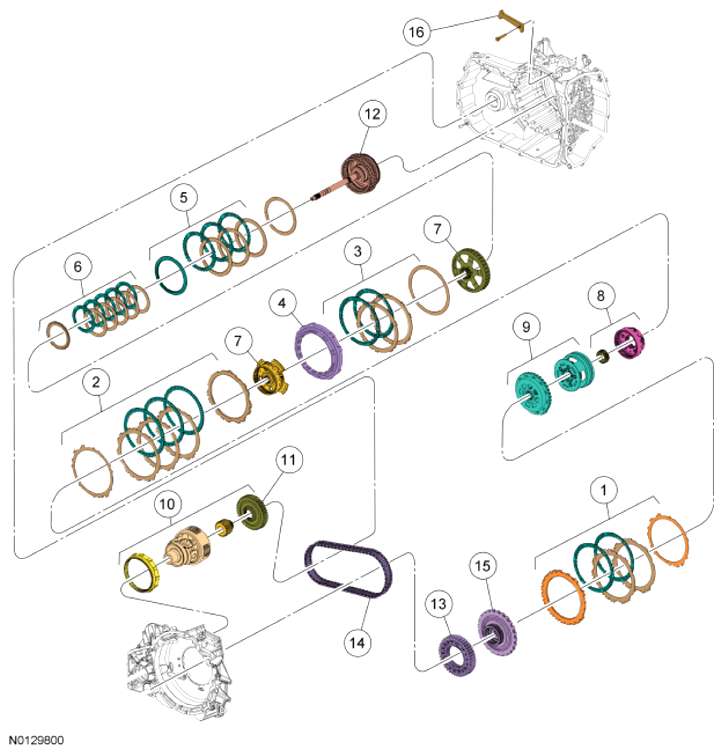

| 1 |
Forward clutch (clutch brake 1, 2, 3, 4) |
| 2 |
Low/reverse clutch (clutch brake low/reverse) |
| 3 |
Intermediate clutch (clutch brake 2, 6) |
| 4 |
Low OWC |
| 5 |
Direct clutch (drive clutch 3, 5, R) |
| 6 |
O/D clutch (drive clutch 4, 5, 6) |
| 7 |
Rear planetary assembly |
| 8 |
Center planetary assembly |
| 9 |
Front planetary assembly |
| 10 |
Final drive carrier and differential assembly |
| 11 |
Drive chain driven sprocket |
| 12 |
Input shaft assembly and direct/overdrive clutch hub |
| 13 |
Drive chain drive sprocket |
| 14 |
Drive chain |
| 15 |
Park gear |
| 16 |
Park pawl |
