Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

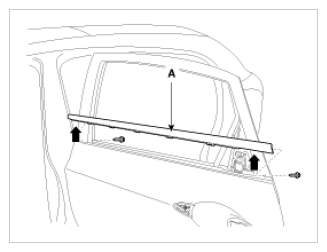

After loosening the mounting screws, then remove the rear door belt outside weatherstrip (A).

Fig 1: Locating Rear Door Belt Outside Weatherstrip
Courtesy of HYUNDAI MOTOR AMERICA

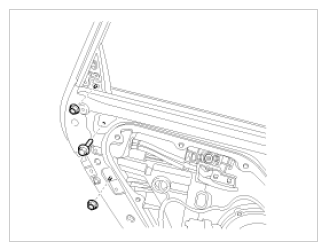

Loosen the rear door channel mounting bolt and nuts.
Tightening torque:

3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

Fig 2: Identifying Rear Door Channel Mounting Bolt And Nuts
Courtesy of HYUNDAI MOTOR AMERICA

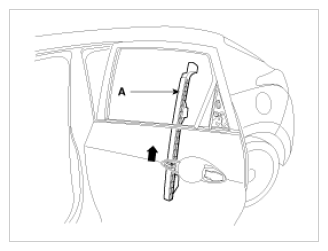

Remove the rear door channel (A).

Fig 3: Removing Rear Door Channel
Courtesy of HYUNDAI MOTOR AMERICA

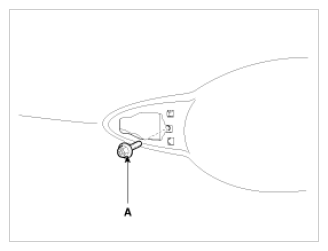

Loosen the outside handle base mounting bolt (A).

Fig 4: Identifying Outside Handle Base Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

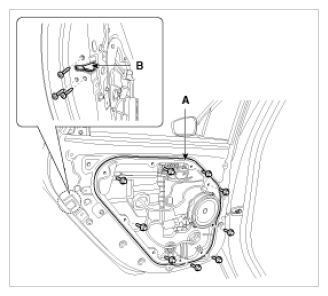

Loosen the rear door latch (B) mounting screws.
After loosening the mounting bolts, then remove the rear door module (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 5: Identifying Rear Door Module And Latch
Courtesy of HYUNDAI MOTOR AMERICA

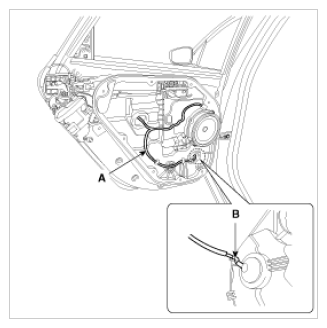

Disconnect the rear door module mounting clip (B).
Disconnect the connectors and rear door module wiring harness (A).

Fig 6: Identifying Rear Door Module Mounting Clip And Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly
