Wipers and Washers: Notes

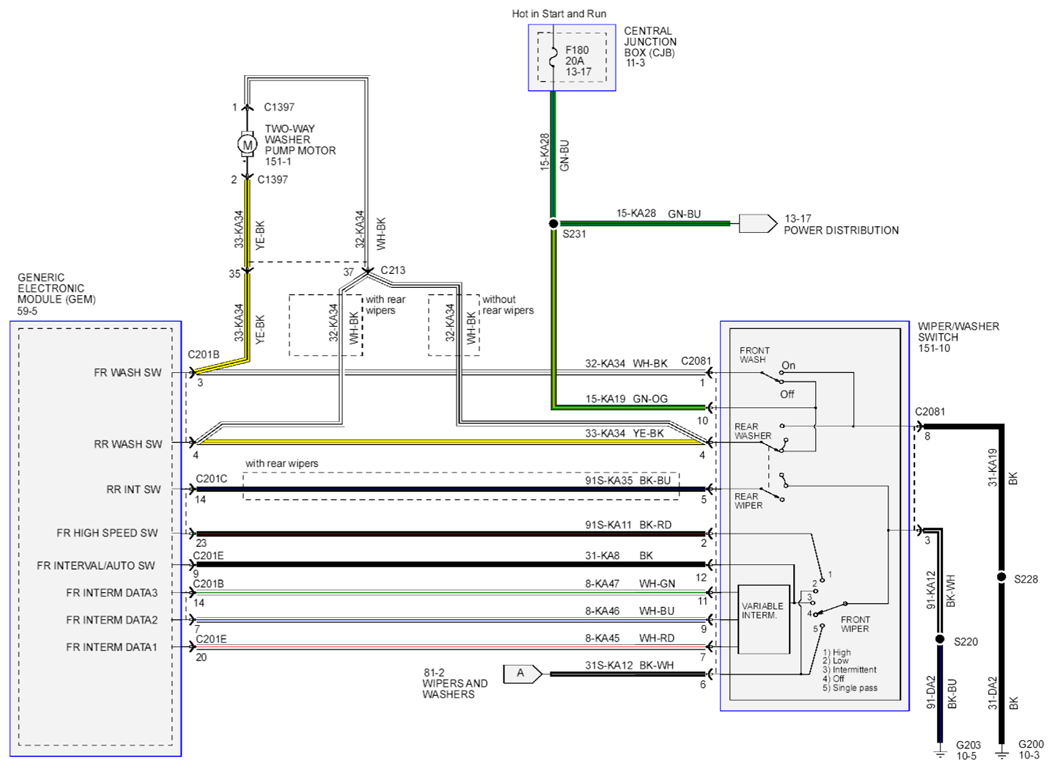

Fig 1: Wipers And Washers Circuit Diagram (1 Of 2)

G07909269

Courtesy of FORD MOTOR CO.

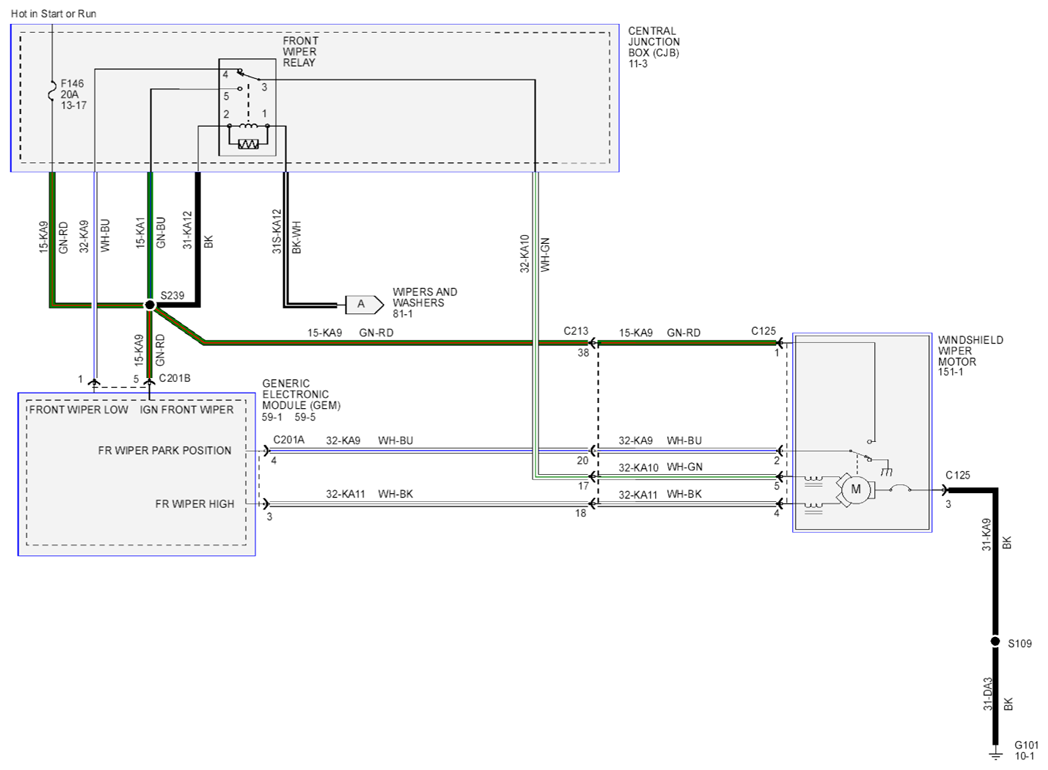

Fig 2: Wipers And Washers Circuit Diagram (2 Of 2)

G07909270

Courtesy of FORD MOTOR CO.
