Transit Connect Base, Van Cargo
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Vehicle Dynamic Systems
Vehicle Dynamic Systems

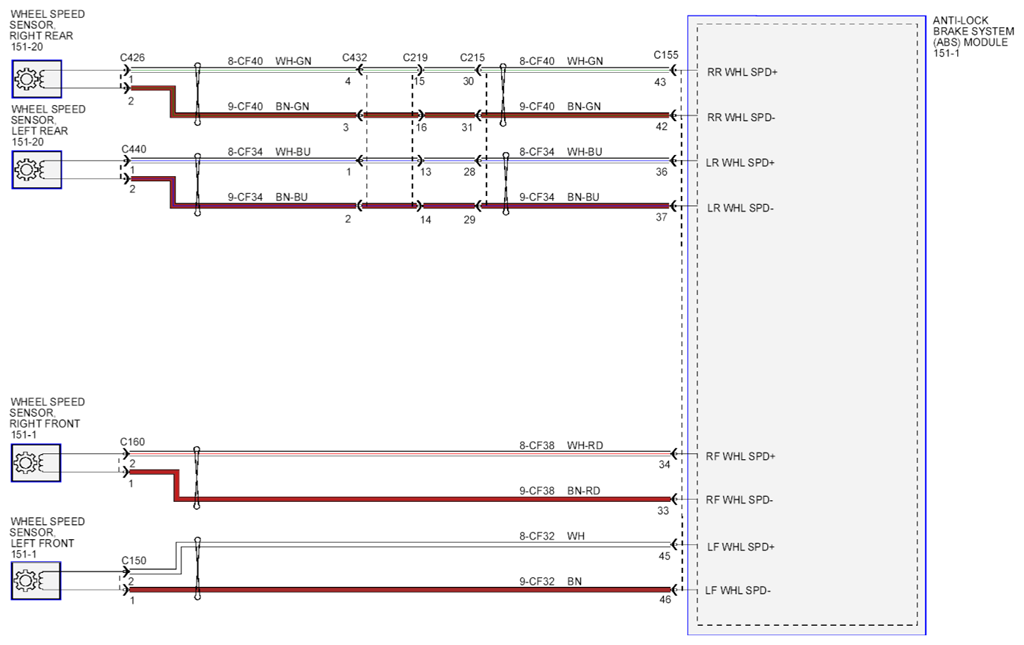

Fig 1: Vehicle Dynamic Systems Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

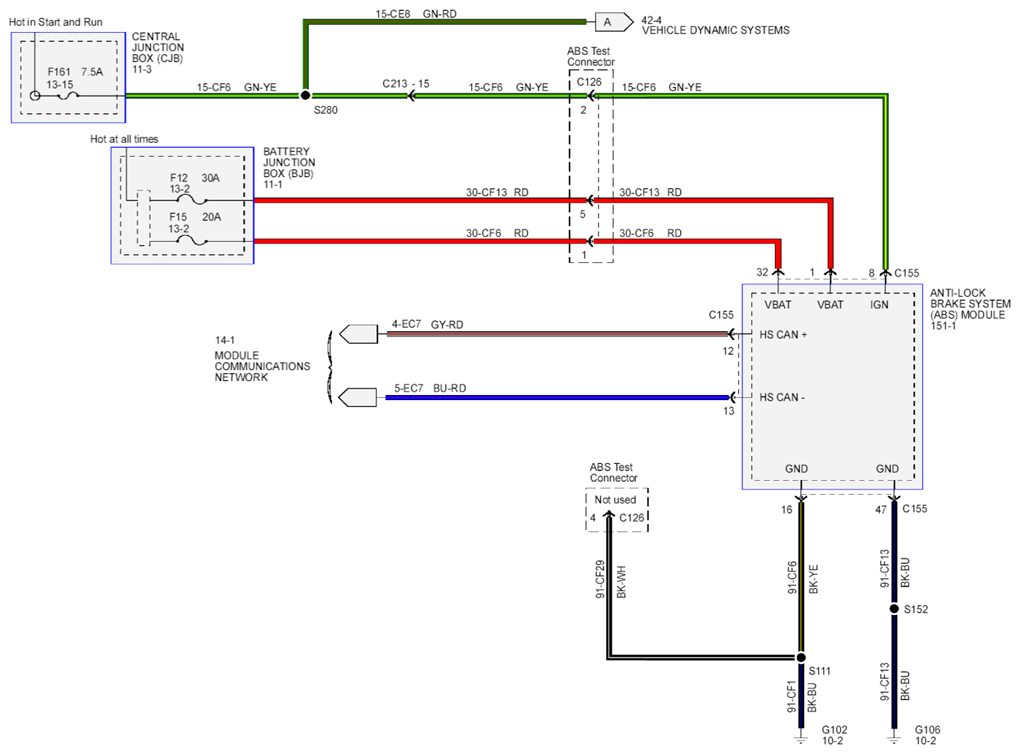

Fig 2: Vehicle Dynamic Systems Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

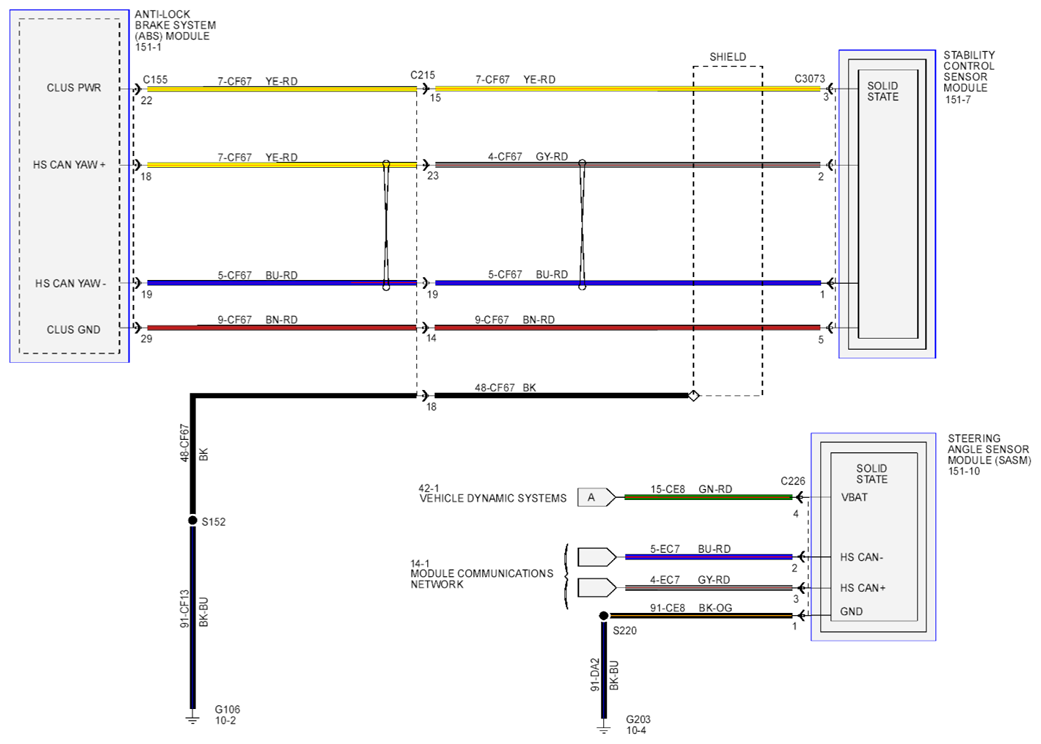

Fig 3: Vehicle Dynamic Systems Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

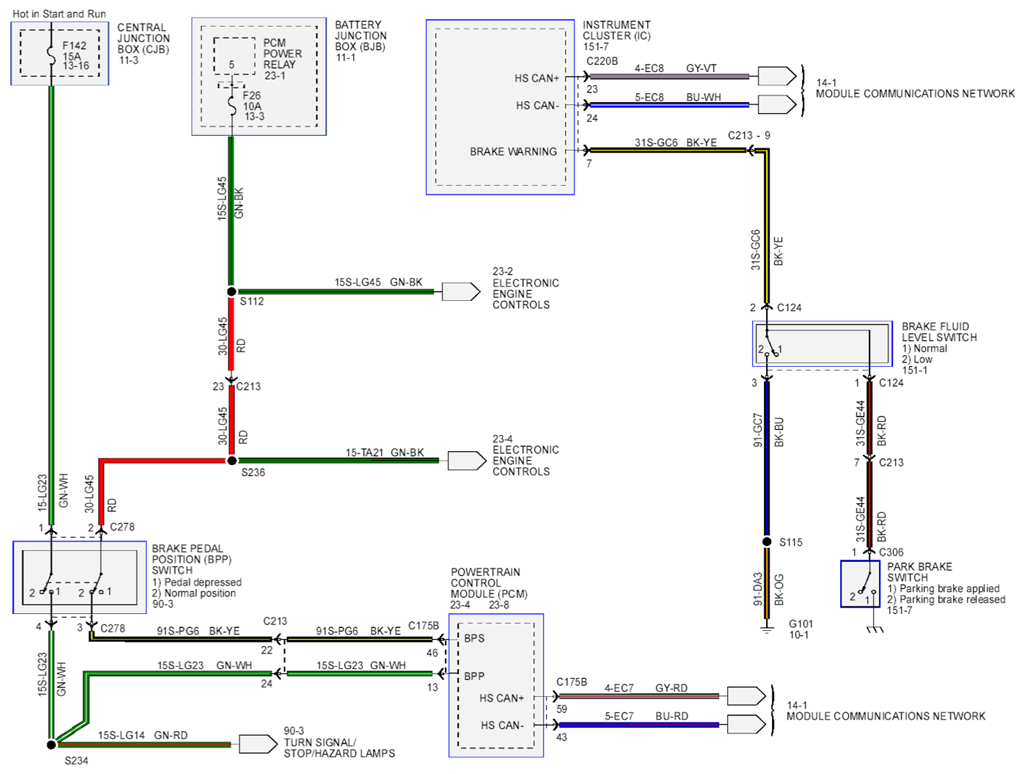

Fig 4: Vehicle Dynamic Systems Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
