Transit Connect Base, Van Cargo
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Transmission Controls
Transmission Controls

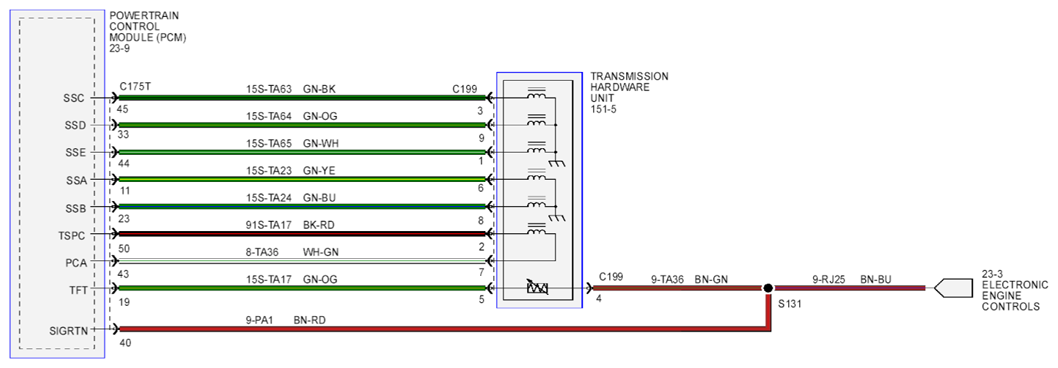

Fig 1: Transmission Controls Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

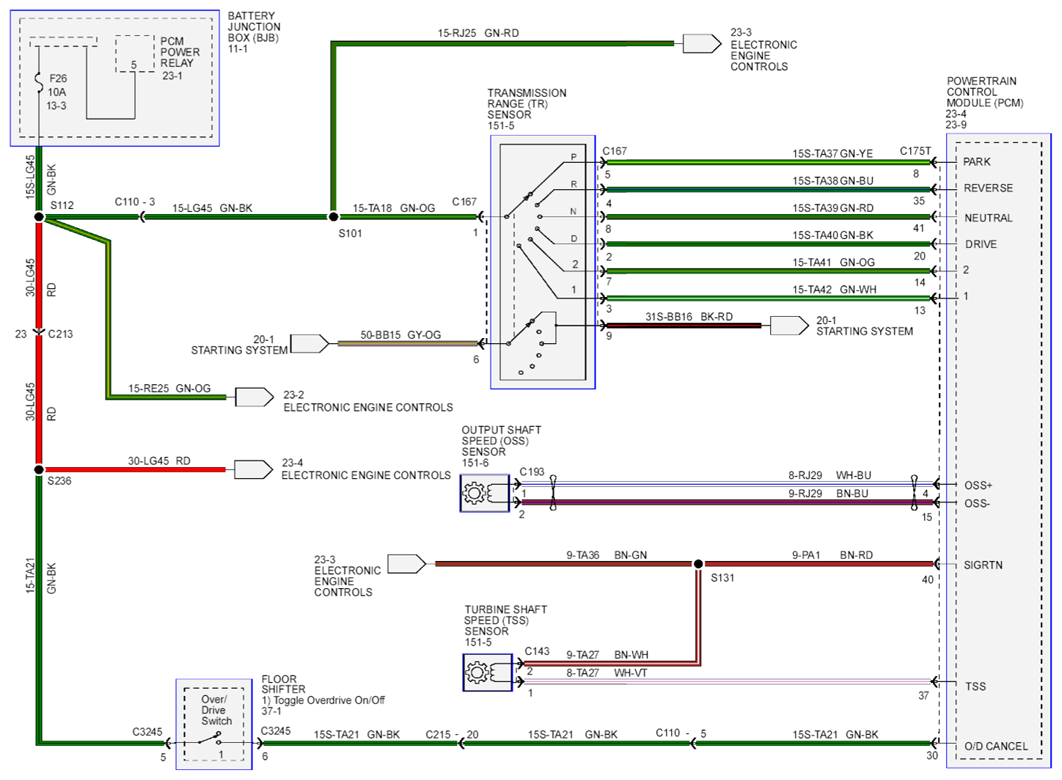

Fig 2: Transmission Controls Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
