Multifunction Control Modules
>>
With Manual Door Locks
With Manual Door Locks

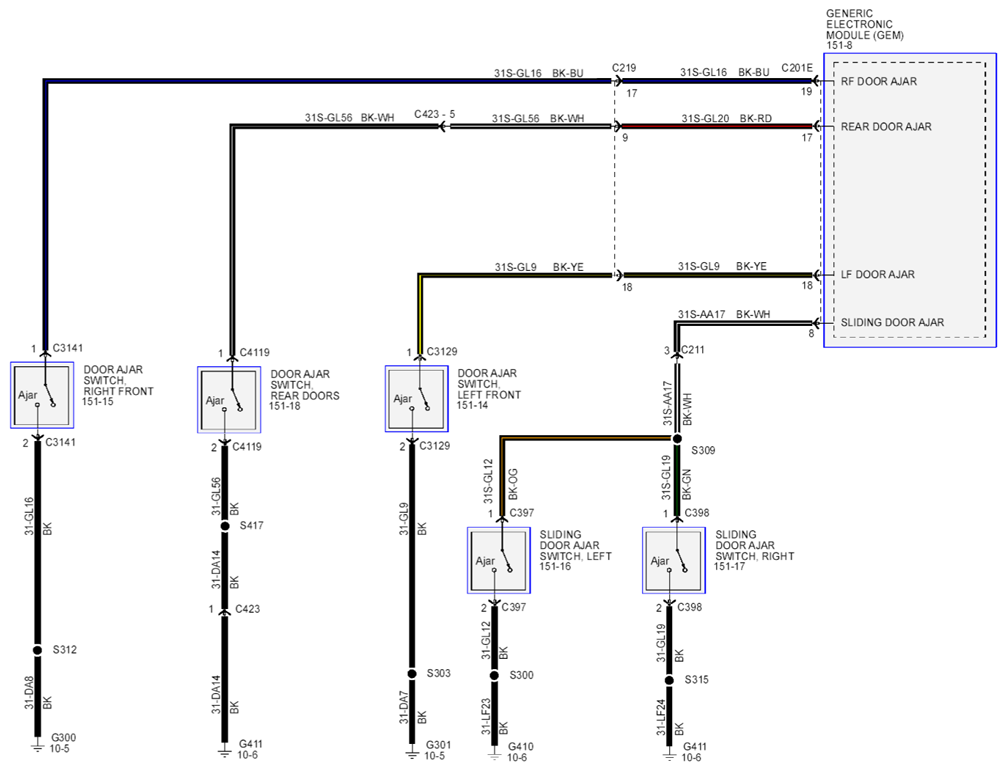

Fig 1: Multifunction Control Modules Circuit Diagram - With Manual Door Locks
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
