Home
>>
Ford
>>
2012
>>
Transit Connect Base, Van Cargo
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Ford Work Solutions
Ford Work Solutions

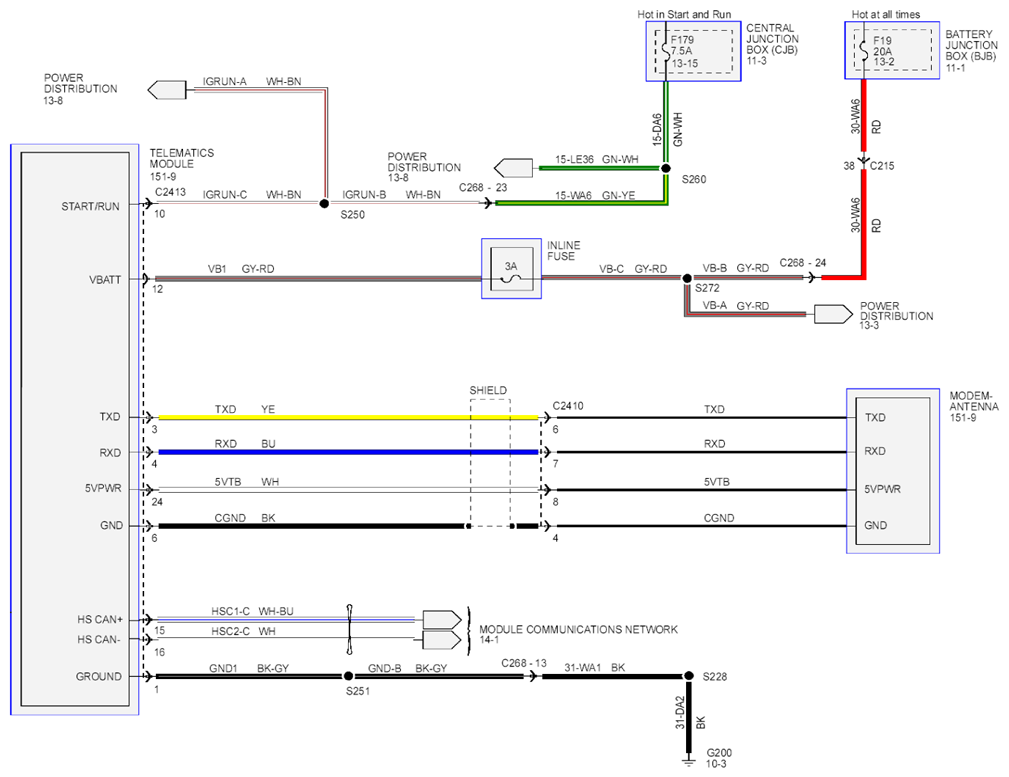

Fig 1: Ford Work Solutions Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
