Electronic Engine Controls

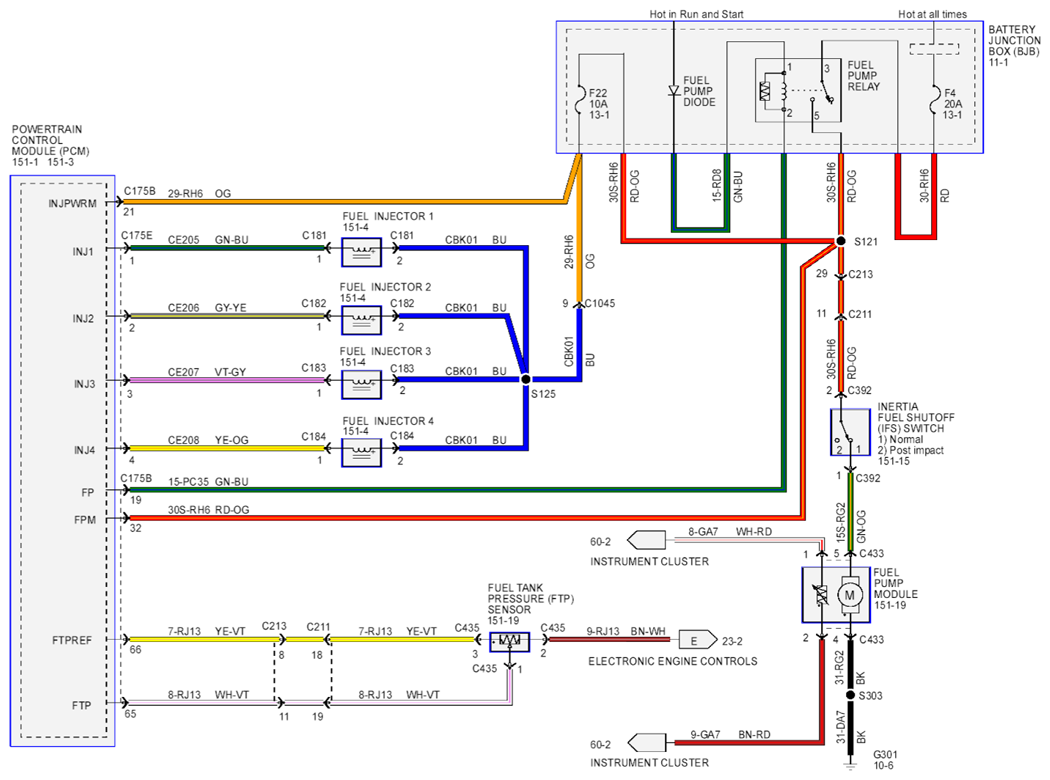

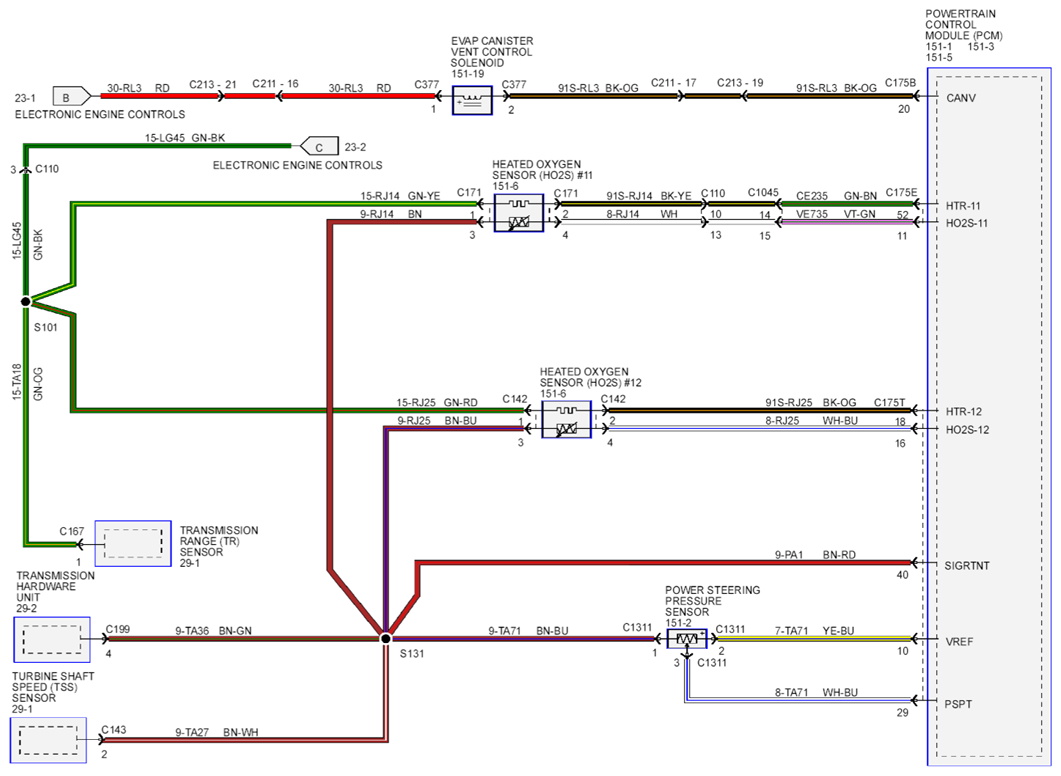

Fig 1: Electronic Engine Controls Circuit Diagram (1 Of 9)

Courtesy of FORD MOTOR CO.

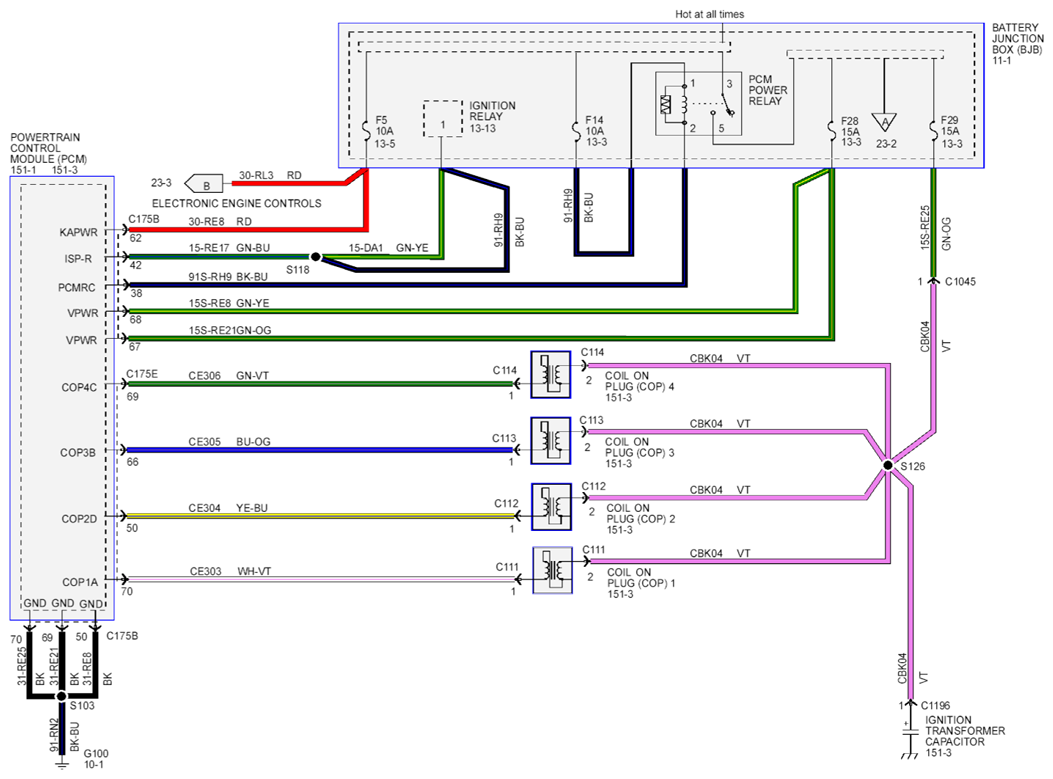

Fig 2: Electronic Engine Controls Circuit Diagram (2 Of 9)

Courtesy of FORD MOTOR CO.

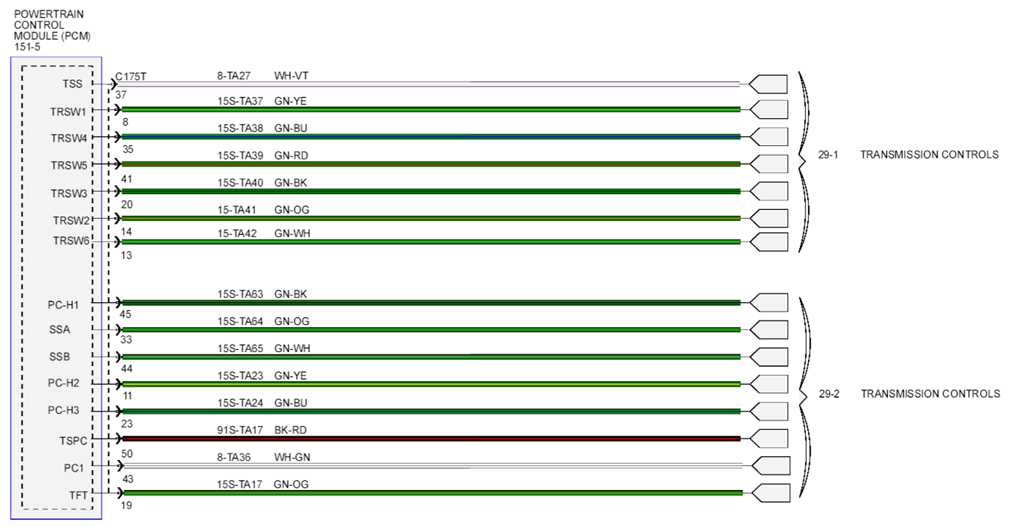

Fig 3: Electronic Engine Controls Circuit Diagram (3 Of 9)

Courtesy of FORD MOTOR CO.

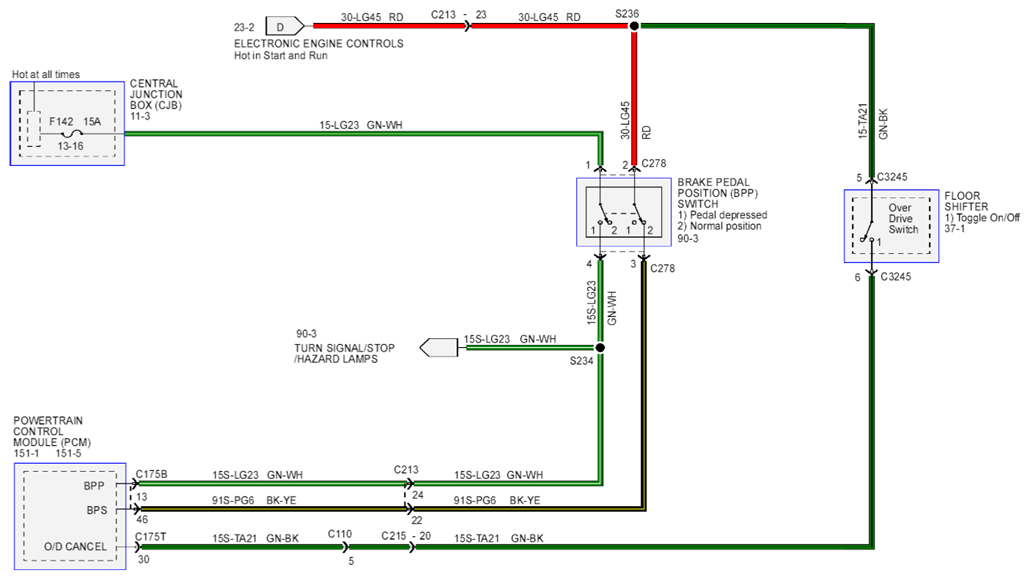

Fig 4: Electronic Engine Controls Circuit Diagram (4 Of 9)

Courtesy of FORD MOTOR CO.

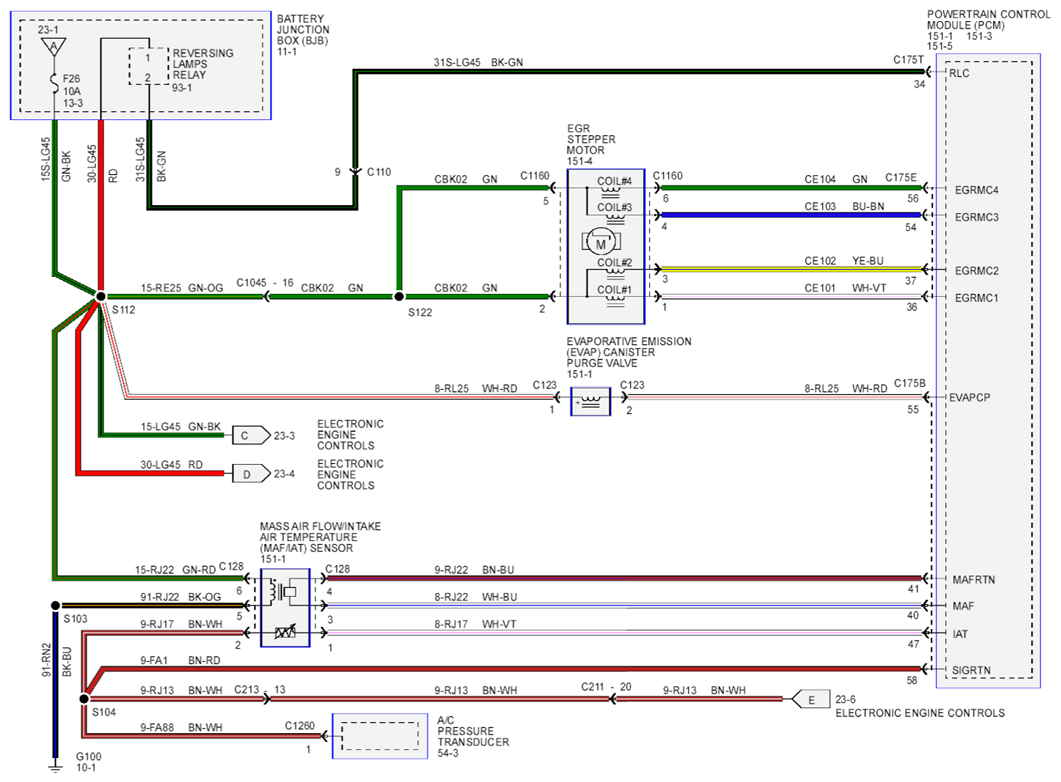

Fig 5: Electronic Engine Controls Circuit Diagram (5 Of 9)

Courtesy of FORD MOTOR CO.

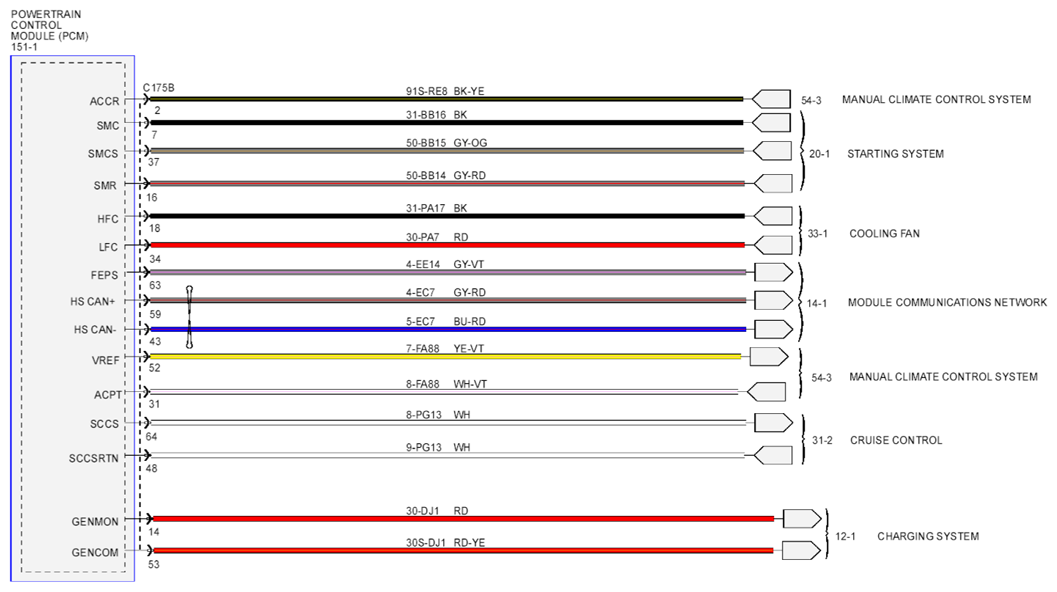

Fig 6: Electronic Engine Controls Circuit Diagram (6 Of 9)

Courtesy of FORD MOTOR CO.

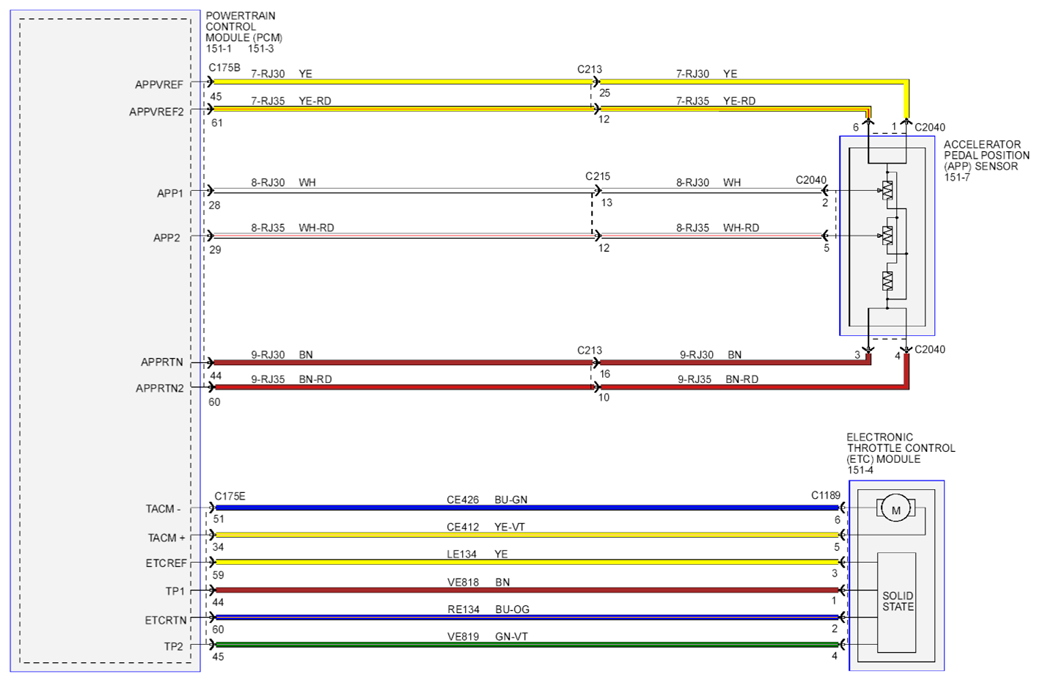

Fig 7: Electronic Engine Controls Circuit Diagram (7 Of 9)

Courtesy of FORD MOTOR CO.

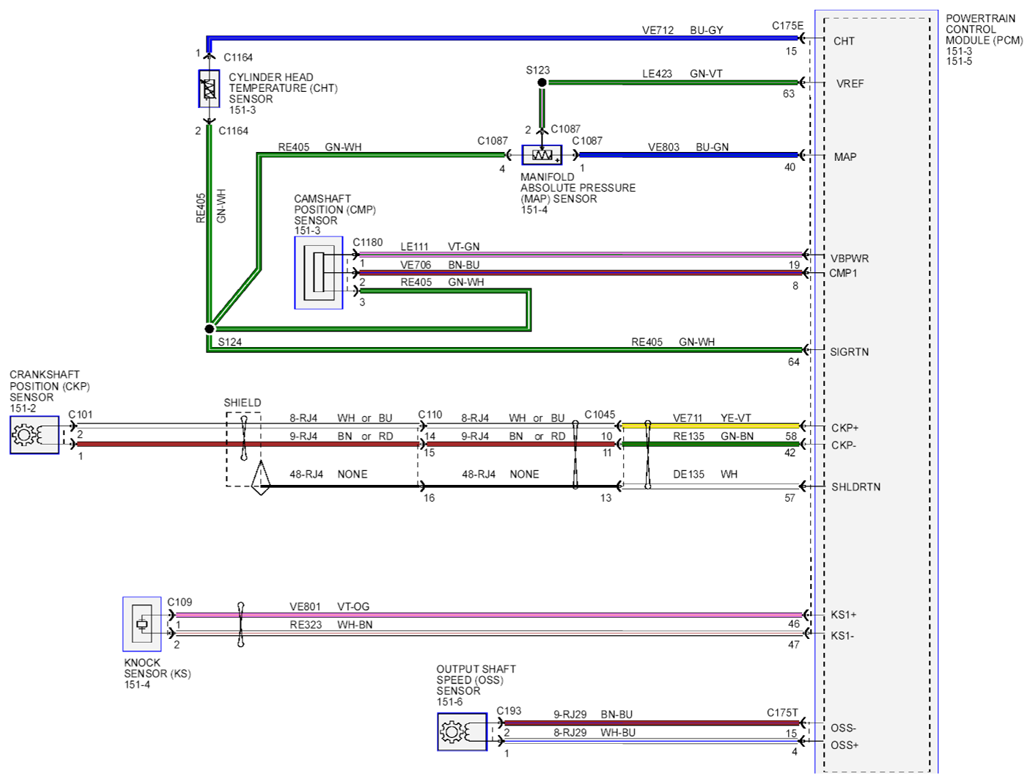

Fig 8: Electronic Engine Controls Circuit Diagram (8 Of 9)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls Circuit Diagram (9 Of 9)

Courtesy of FORD MOTOR CO.
