Audio System: Sync

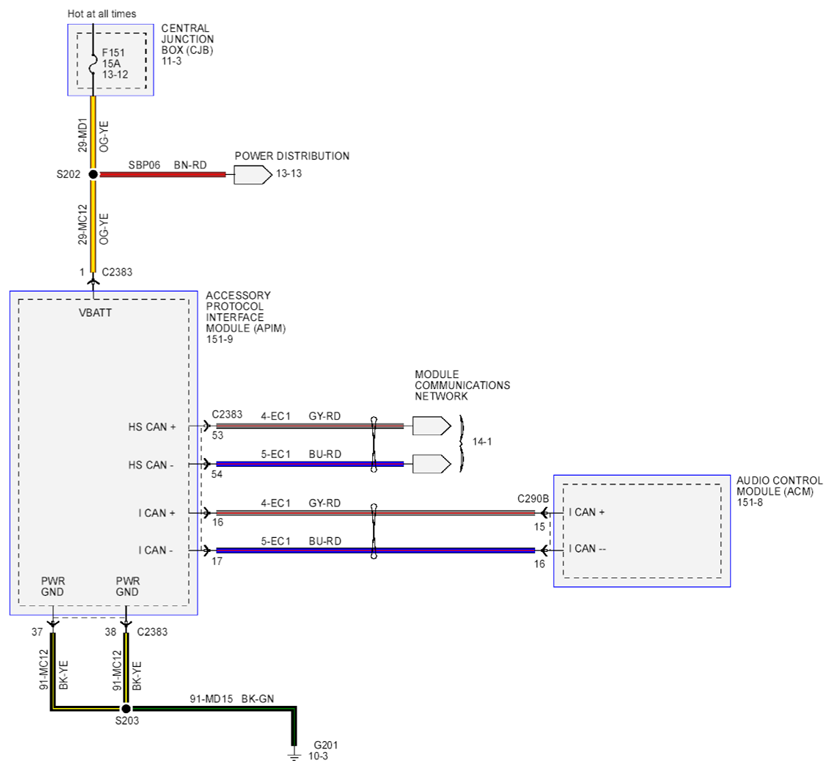

Fig 1: Audio System Circuit Diagram - Sync (1 Of 3)
G07909313Courtesy of FORD MOTOR CO.

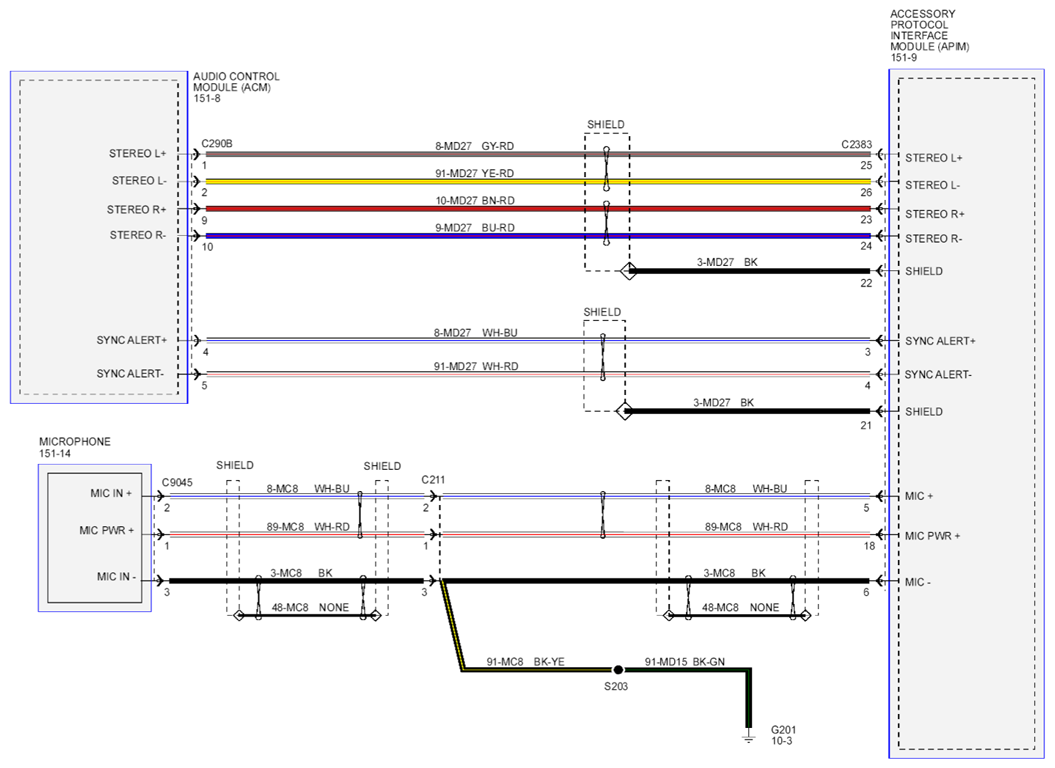

Fig 2: Audio System Circuit Diagram - Sync (2 Of 3)
G07909314Courtesy of FORD MOTOR CO.

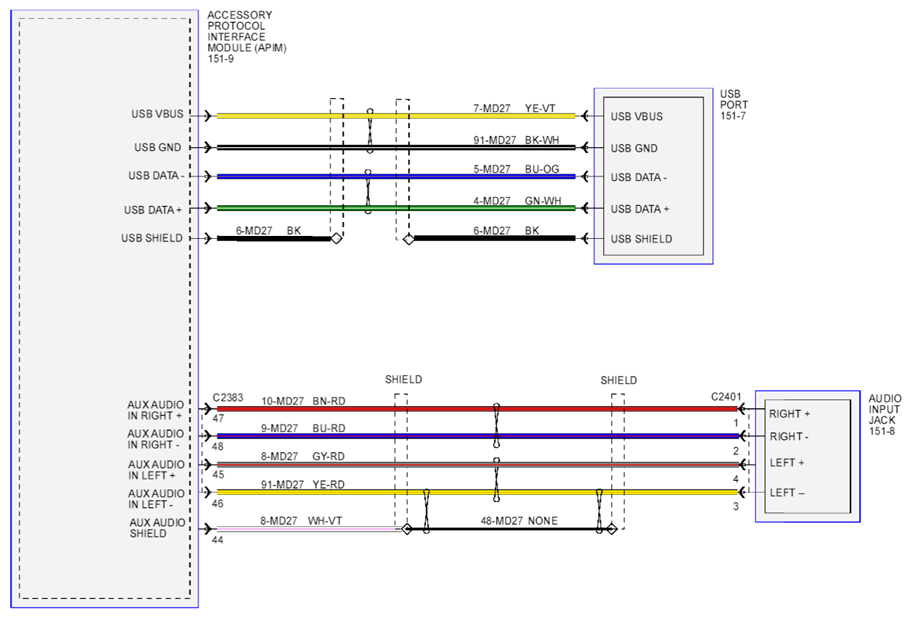

Fig 3: Audio System Circuit Diagram - Sync (3 Of 3)
G07909315Courtesy of FORD MOTOR CO.
