Transit Connect Base, Van Cargo
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Audio System
>>
Late Production
Late Production

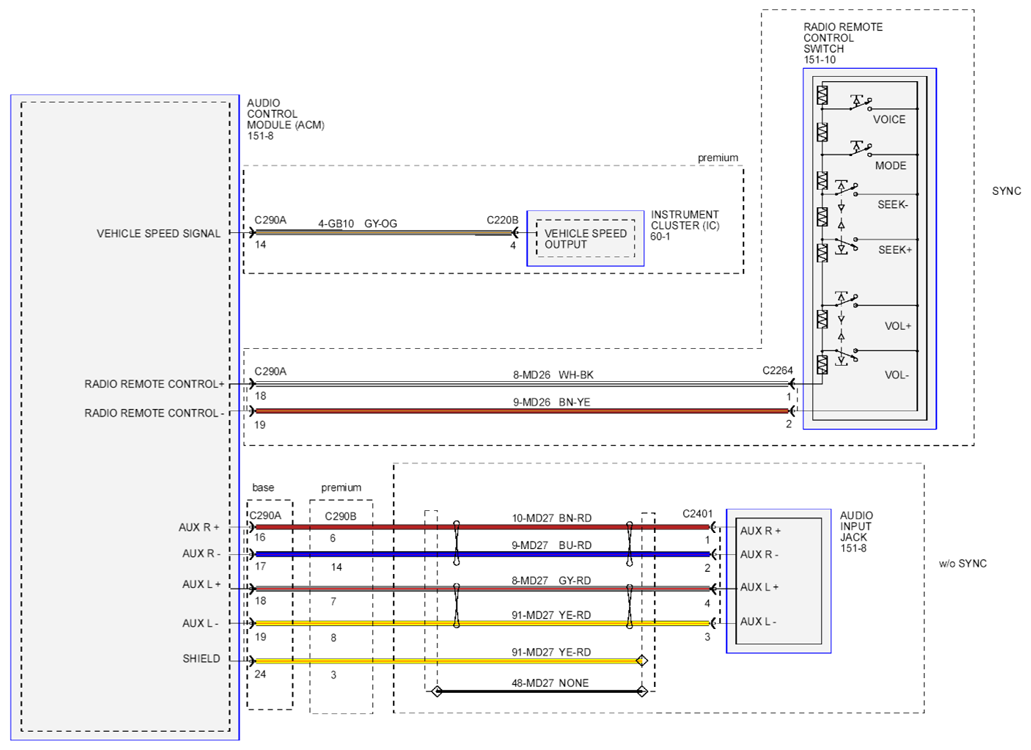

Fig 1: Audio System Circuit Diagram - Late Production (1 Of 2)
Courtesy of FORD MOTOR CO.

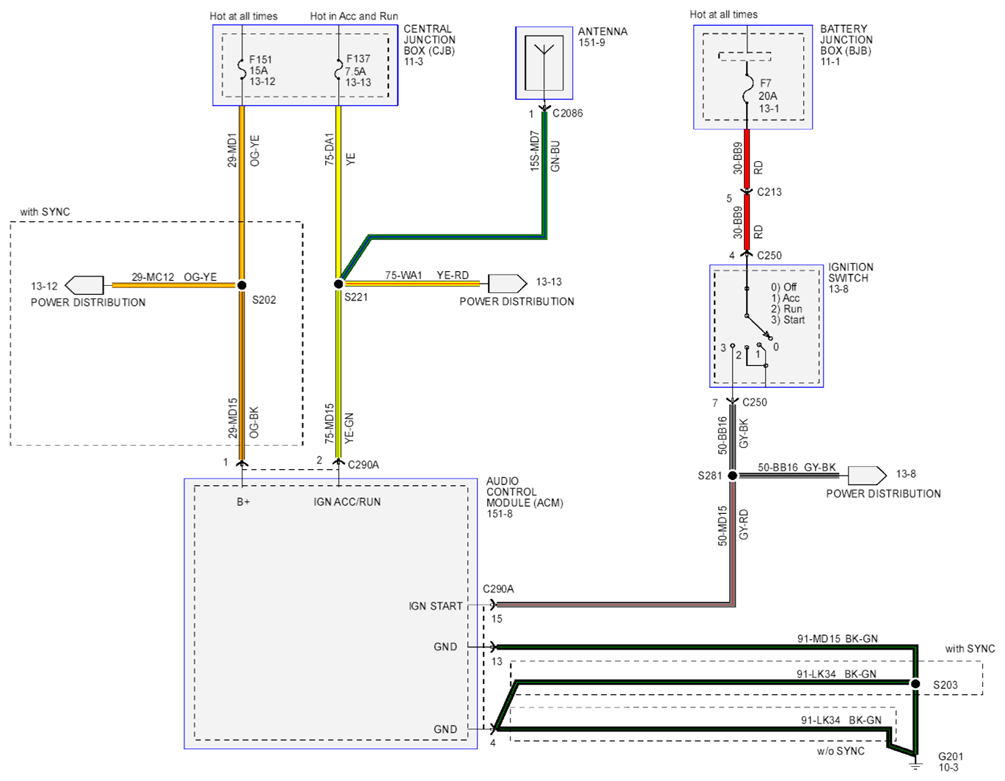

Fig 2: Audio System Circuit Diagram - Late Production (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
