Coolant Pump: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada) |
WSS-M97B44-D |

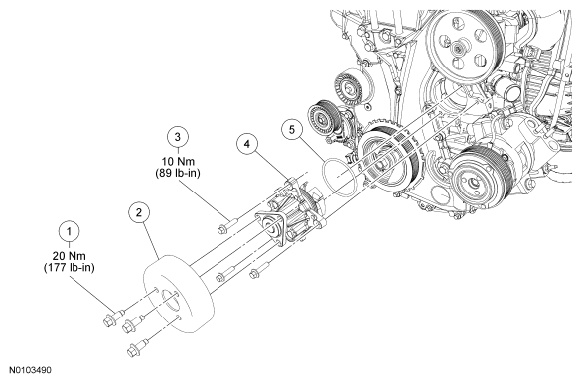

| Item | Part Number | Description |
|---|---|---|
| 1 | W500221 | Coolant pump pulley bolt (3 required) |
| 2 | 8509 | Coolant pump pulley |
| 3 | W500015 | Coolant pump bolt (3 required) |
| 4 | 8501 | Coolant pump |
| 5 | 8507 | Coolant pump O-ring seal |
