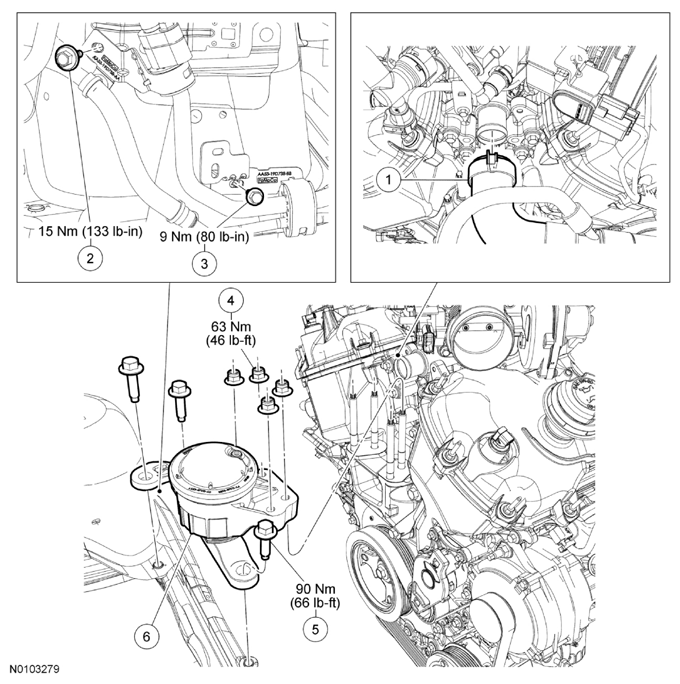

Engine Mount: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8B274 |
Upper radiator hose |
| 2 |
W708877 |
A/C tube bracket bolt |
| 3 |
W705622 |
A/C tube retaining clamp bolt |
| 4 |
W714682 |
Engine mount-to-engine nut (4 required) |
| 5 |
W712507 |
Engine mount-to-frame bolts (3 required) |
| 6 |
6F012 |
Engine mount |
