Rear Spring: Installation

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

1.

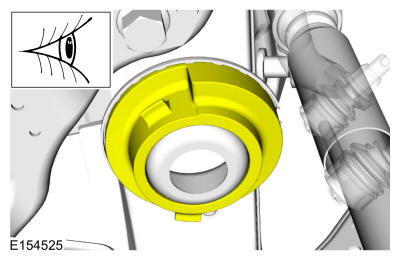

Check the upper spring seat for damage. Replace as necessary.

Courtesy of FORD MOTOR COMPANY

2.

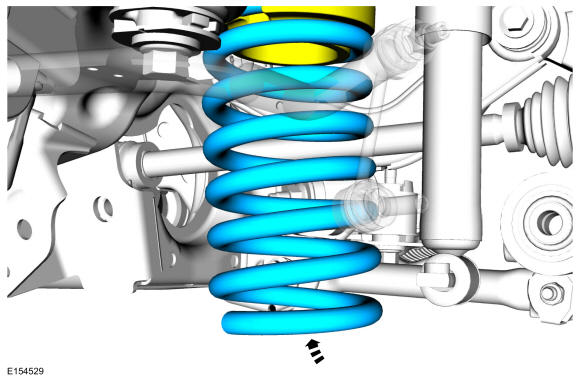

Install the spring.

Courtesy of FORD MOTOR COMPANY

3.

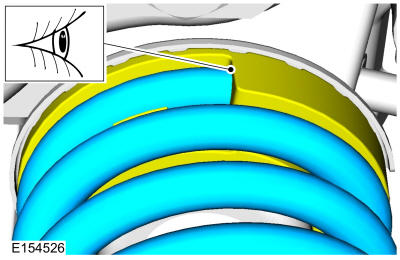

NOTE: Make sure that the spring is correctly located in the upper spring seat.

Align the spring in the upper spring seat.

Courtesy of FORD MOTOR COMPANY

4.

Install the lower arm. Refer to: Lower Arm .
