Driver Seat Module (DSM): Notes

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

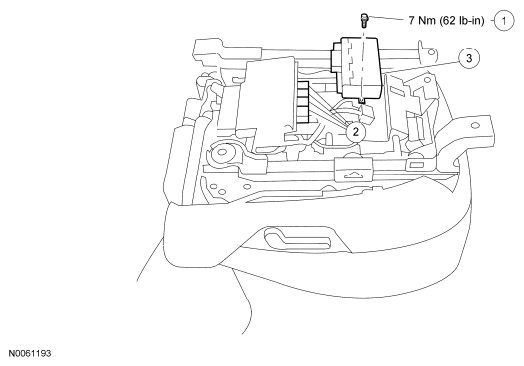

Fig 1: Driver Seat Module, Electrical Connector And Mounting Screws With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Driver Seat Module (DSM) screws (2 required) (part of 14C708)
2	-	DSM electrical connectors (part of 14C719)
3	14C708	DSM
