Starting System: Notes

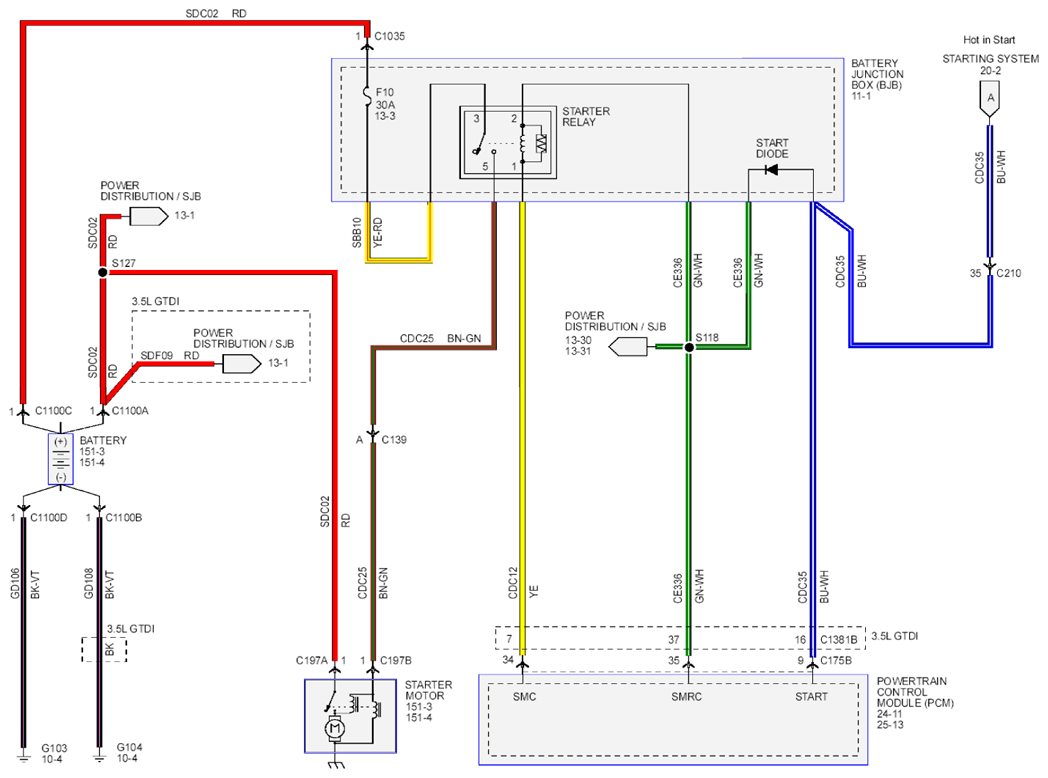

Fig 1: Starting System Circuit Diagram

G07898083

Courtesy of FORD MOTOR CO.
