Valve Seat Width
NOTE:
Refer to the SPECIFICATIONS
for 3.5L & SPECIFICATIONS
for 3.5L GDTI
for the specification.

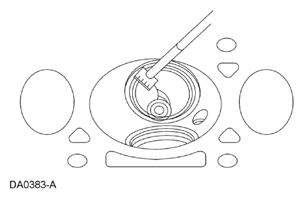

- Measure the valve seat width. If necessary, grind the valve seat to specification.
- Measure the intake valve seat width.
- Measure the exhaust valve seat width.
- Recheck the valve spring installed length after the seats have been ground, and shim the valve springs as necessary to achieve the correct installed spring length.
- Depending on the engine, check the valve lash. Refer to General Procedures in GENERAL PROCEDURES for 3.5L &GENERAL PROCEDURES for 3.5L GTDI .
