Audio System_Navigation
>>
Notes
Audio System_Navigation: Notes

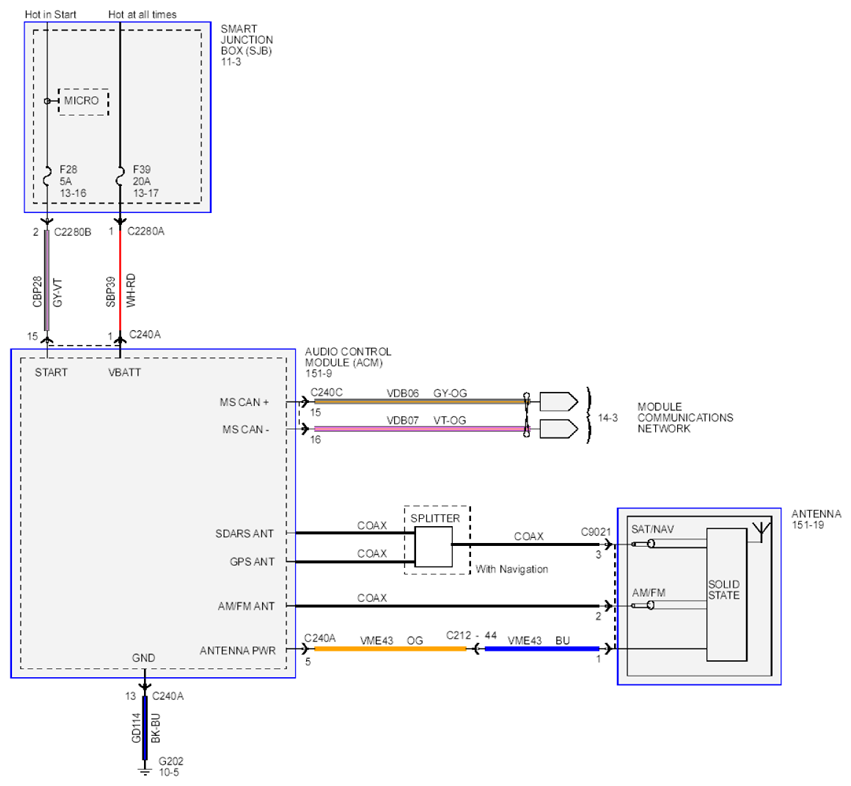

Fig 1: Audio System And Navigation Circuit Diagram (View 1 Of 20)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
