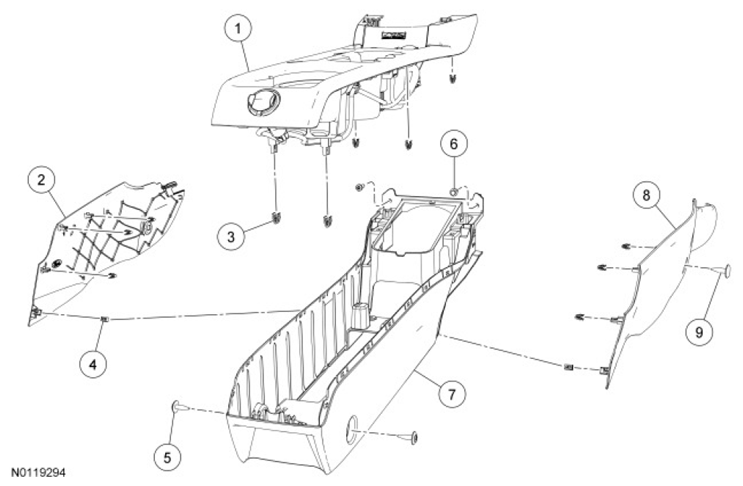

Console - Floor: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 045A76 | Floor console finish panel |
| 2 | 04608 | RH floor console side panel |
| 3 | W714972 | Floor console finish panel clips (6 required) |
| 4 | W714972 | Floor console side panel clips (4 required) |
| 5 | N808720 | Floor console rear screws (2 required) |
| 6 | W500214 | Floor console front screws (2 required) |
| 7 | 045A36 | Floor console assembly |
| 8 | 04609 | LH floor console side panel |
| 9 | W707068 | Side panel push pin (2 required) |
