Audio System_Navigation: Notes

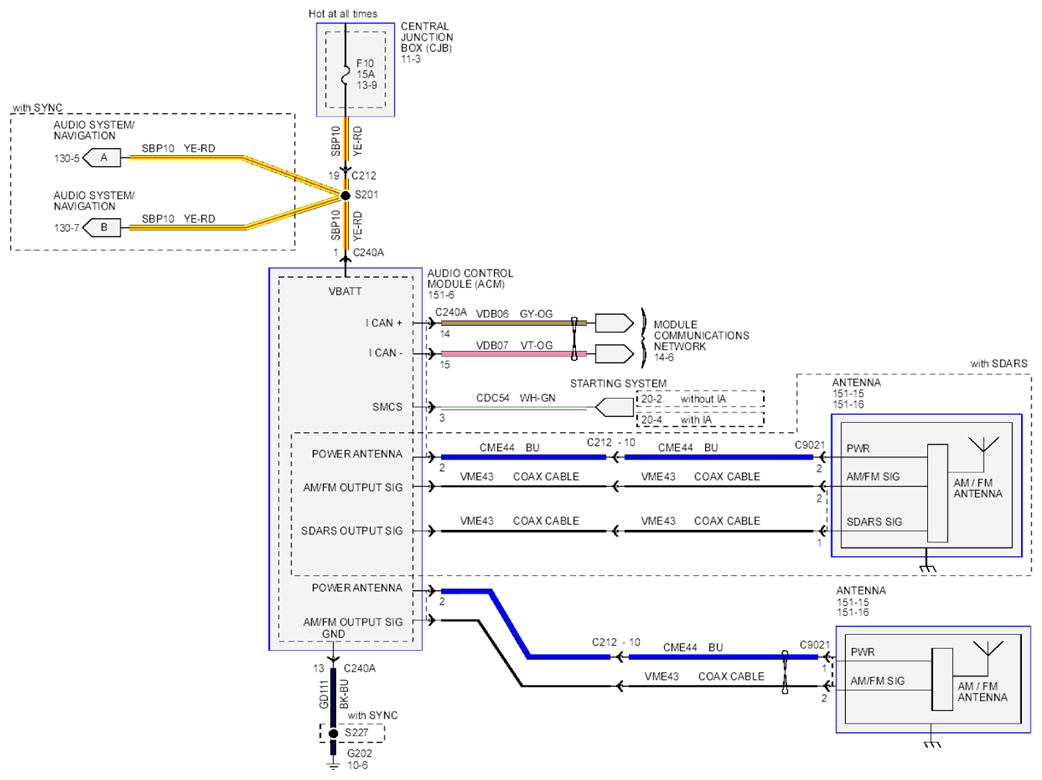

Fig 1: Audio System_Navigation Circuit Diagram (1 Of 3)
G07894535Courtesy of FORD MOTOR CO.

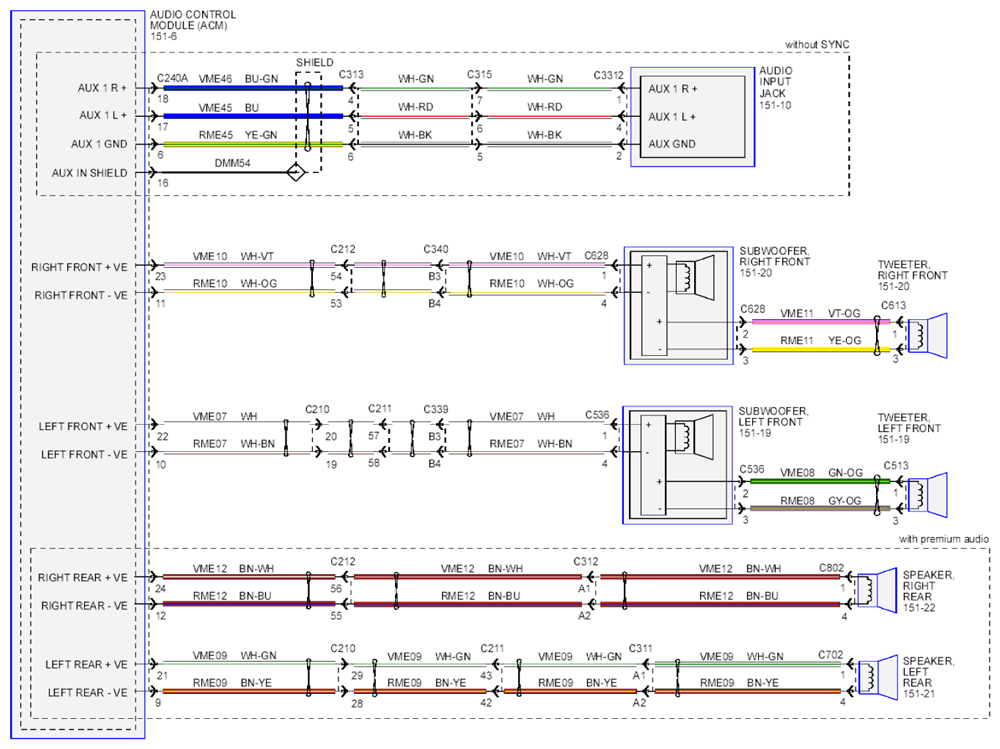

Fig 2: Audio System_Navigation Circuit Diagram (2 Of 3)
G07894536Courtesy of FORD MOTOR CO.

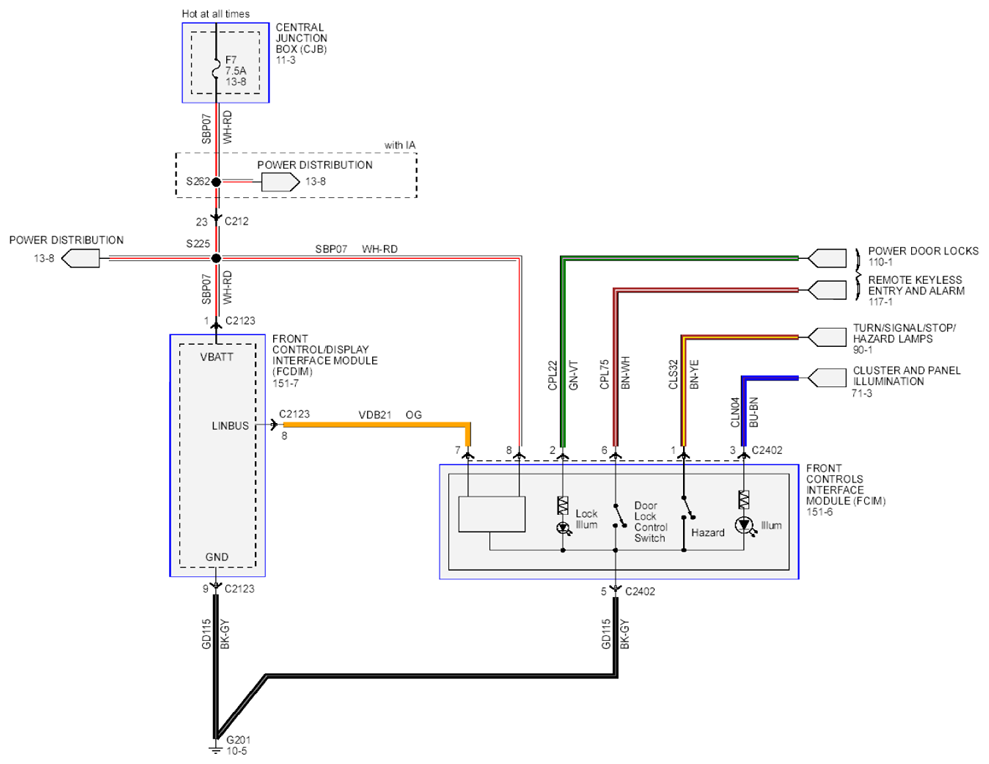

Fig 3: Audio System_Navigation Circuit Diagram (3 Of 3)
G07894537Courtesy of FORD MOTOR CO.
