OEM Ground Distribution: Grounds: G403

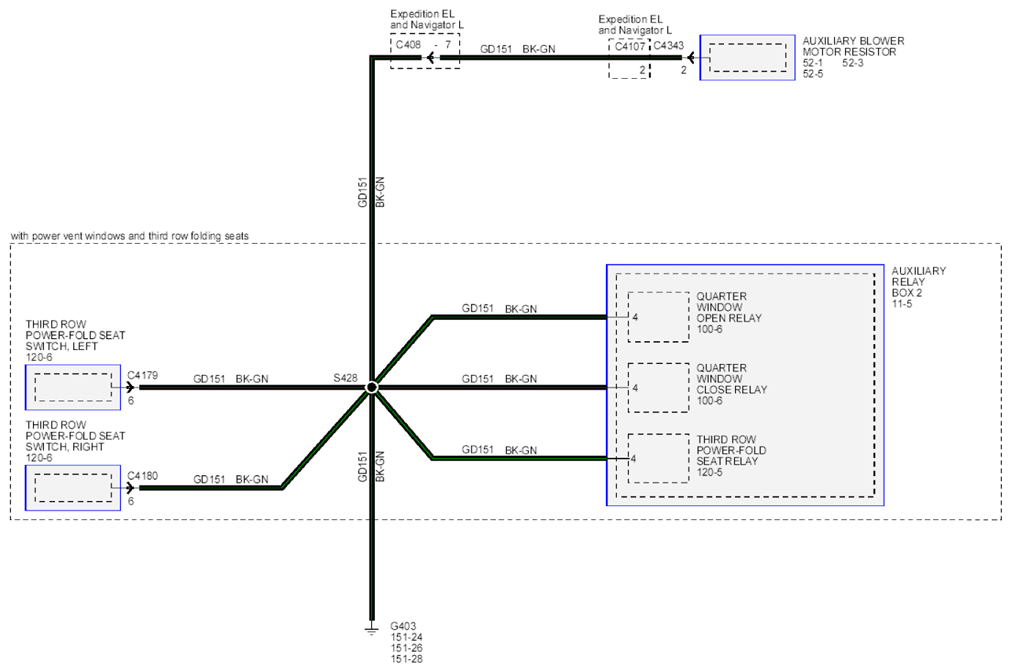

Fig 1: Grounds Circuit Diagram (G403)

G07900409

Courtesy of FORD MOTOR CO.
