Occupant Classification Sensor: Removal

NOTE: To prevent system failure, it is necessary to carry out the Occupant Classification System (OCS) system reset when a front passenger seat cushion is disassembled, a new cover installed or an OCS  system service kit is installed. A scan tool is used to carry out the OCS  system reset.
NOTE: An OCS  system service kit has the electrical connector glued to the Occupant Classification System Module (OCSM). It cannot and should not be disconnected or altered.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Remove the passenger seat. For additional information, refer to the Removal and Installation portion of SEAT SYSTEM article.
  2. Remove the screw, slide up and remove the recliner handle.
  3. If equipped, remove the height adjust handle.
    • Release the locking tab behind the handle.
    Fig 1: Locating Locking Tab Behind Handle
    G06293778Courtesy of FORD MOTOR CO.
  4. Remove the screw and outboard side shield.
    • Release at the rear, slide and rotate forward to remove.
  5. Remove the screw and inboard side shield.
    • Detach the safety belt buckle wire harness.
  6. Release all backrest cover strap clips from under the seat.
  7. Release all J-clips and invert the cushion cover.
  8. Remove all hog rings and cushion cover.
  9. Detach the seat electrical bulkhead connector and wire harness from the seat track.
  10. Insert a suitable tool to release the locking tabs and remove the brown safety belt buckle electrical connector and yellow side air bag connector from the seat electrical bulkhead connector.
    Fig 2: Locating Brown Safety Belt Buckle Electrical Connector And Yellow Side Air Bag Connector
    G06293793Courtesy of FORD MOTOR CO.
  11. Release the 2 pin-type retainers and separate the OCS  bladder from the cushion half pan.
  12. Release the clip and detach the pressure sensor hose from the suspension spring.
    Fig 3: Locating Pressure Sensor Hose Clip
    G06293798Courtesy of FORD MOTOR CO.

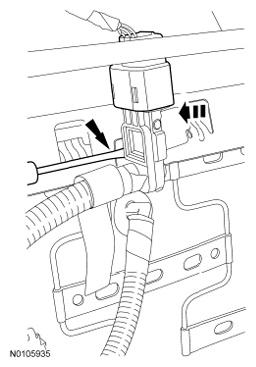

  13. Insert a suitable tool between the pressure sensor and bracket to release the locking tab and remove the pressure sensor from the cushion half pan bracket.
    Fig 4: Inserting Suitable Tool Between Pressure Sensor And Bracket
    G06293792Courtesy of FORD MOTOR CO.
  14. Remove the 2 screws and detach the OCSM  from the cushion half pan.
    Fig 5: Locating OCSM Screws
    G06293927Courtesy of FORD MOTOR CO.
  15. Remove the OCS  system components and seat wiring through the opening in the suspension spring.
    Fig 6: Locating OCS System And Seat Wiring Through
    G06293928Courtesy of FORD MOTOR CO.
