Headlamp switch, Exterior lamps: Schematic

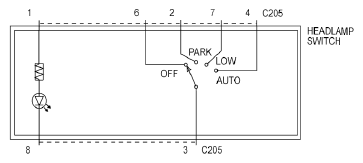

Fig 1: Headlamp Switch, Exterior Lamps - Schematic

G07337036

Courtesy of FORD MOTOR CO.
