Valve Spring Installed Length

NOTE: Refer to the applicable information in the appropriate engine article for the specification.
  1. Measure the installed length of each valve spring.

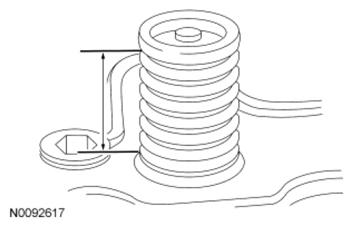

    Fig 1: Measuring Length Of Valve Spring
    G07463426Courtesy of FORD MOTOR CO.
