Automatic Climate Control System
>>
Notes
Automatic Climate Control System: Notes

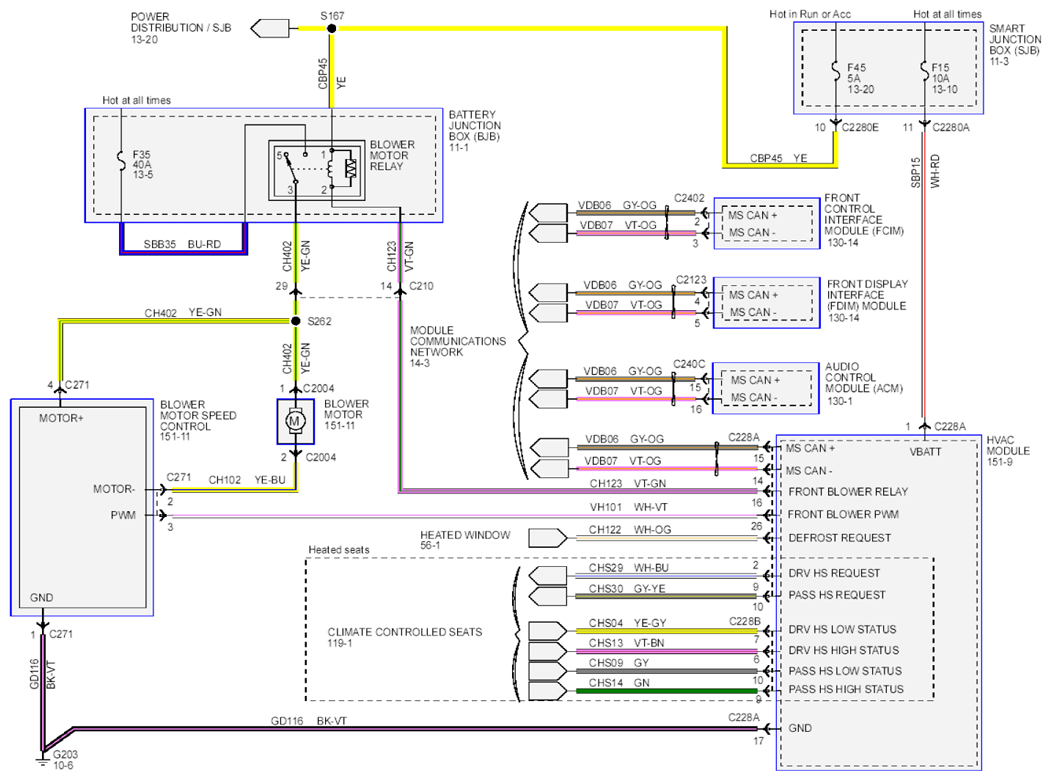

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

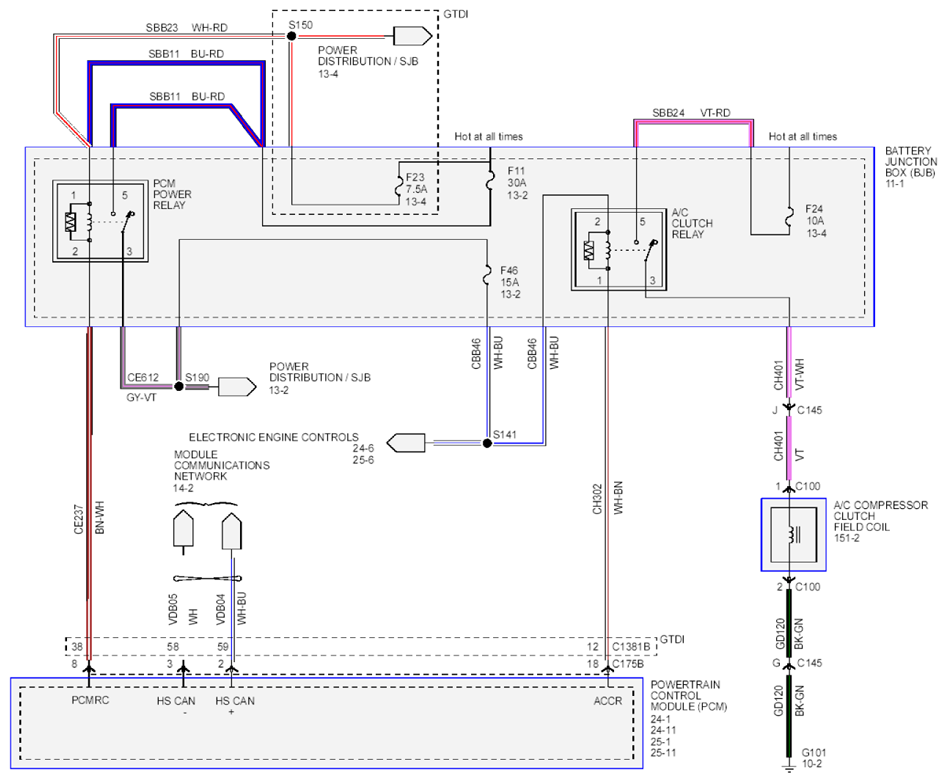

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

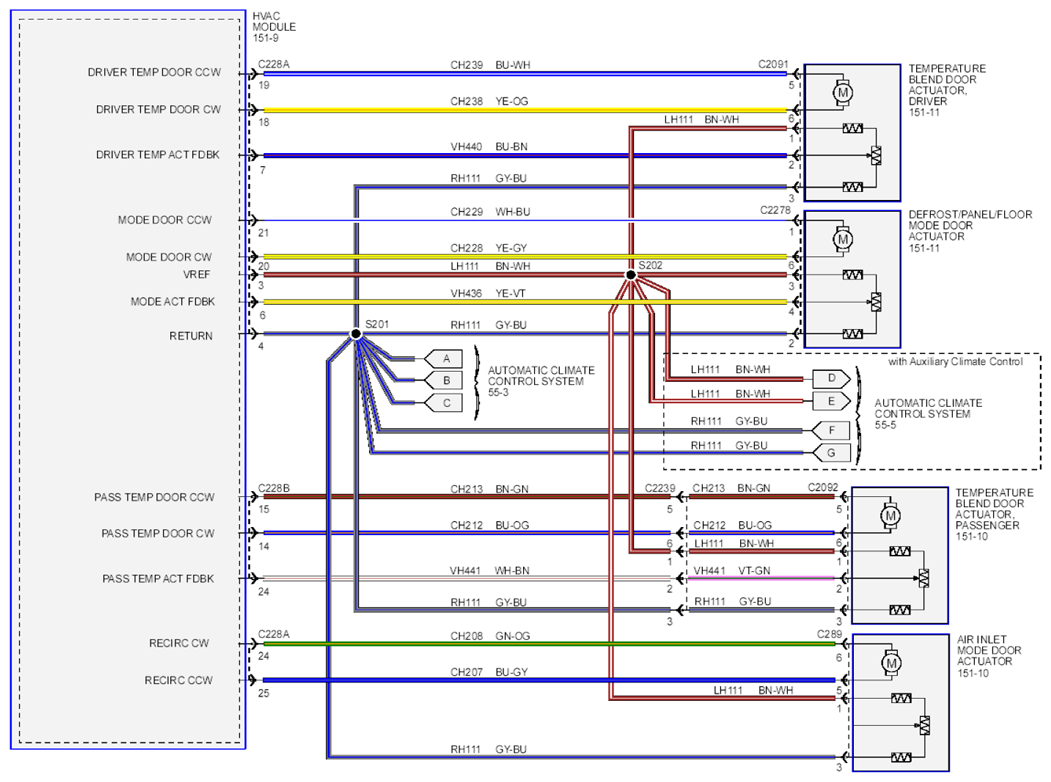

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

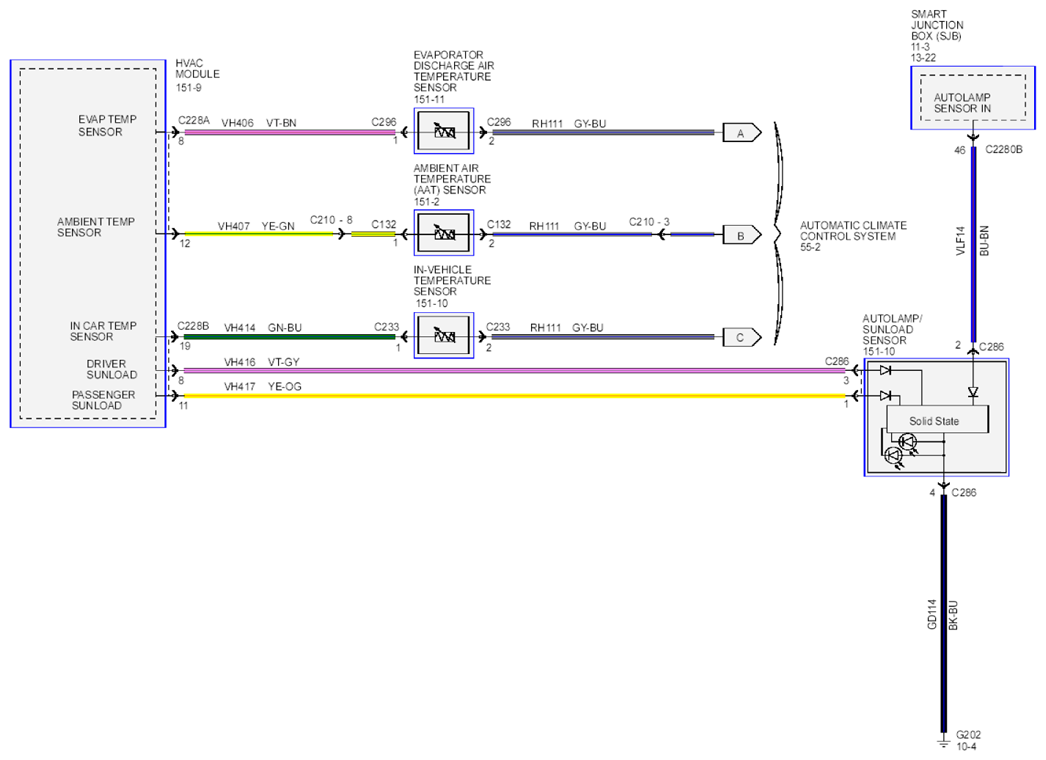

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
