Piston Pin Bore Diameter

NOTE: Refer to the appropriate ENGINE MECHANICAL - 5.4L (3V) for the specification.
    NOTE: Piston and piston pins are a matched set and should not be interchanged.

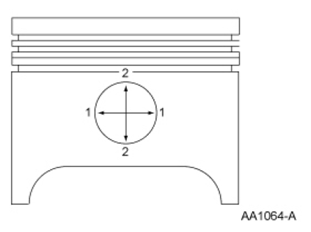

    Fig 1: Measuring Piston Pin Bore Diameter
    G07456138Courtesy of FORD MOTOR CO.
  1. Measure the piston pin bore diameter in 2 directions on each side. Verify the diameter is within specification.
