Rear Disc Brake Shield: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

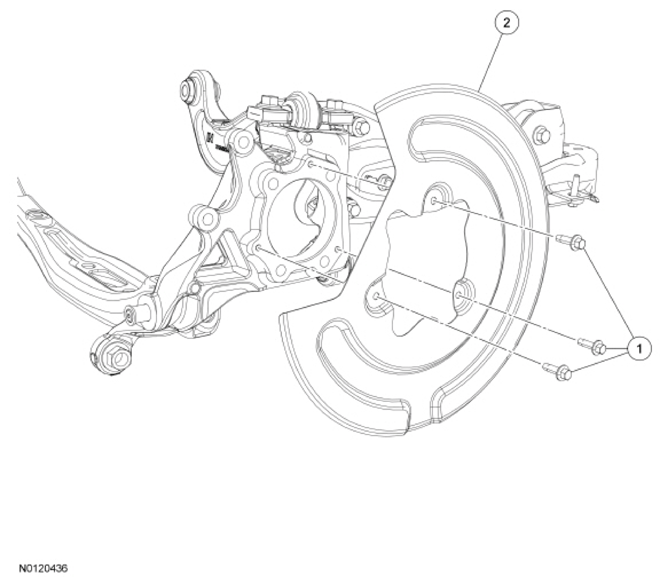

| Item | Part Number | Description |
|---|---|---|
| 1 | W500010 | Brake disc shield bolts (3 required) (15 Nm [133 lb-in]) |
| 2 | 2068 | Brake disc shield |
