RH Side

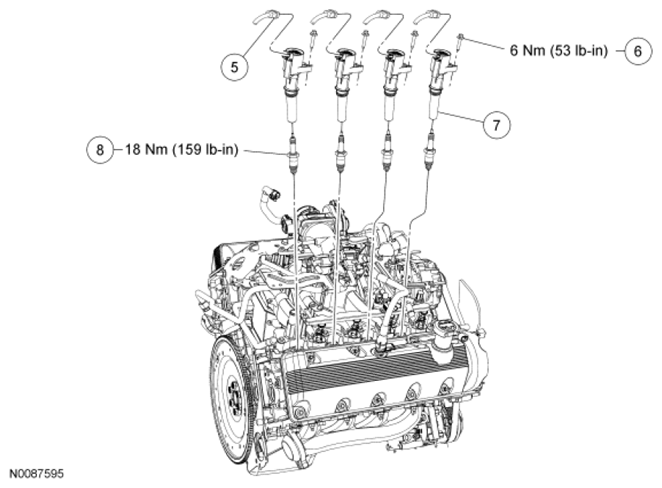

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications (RH Side)
G06564854Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
5 14A464 Ignition coil-on-plug electrical connector (4 required)
6 W706175 Ignition coil-on-plug bolt (4 required)
7 12A366 Ignition coil (4 required)
8 12405 Spark plug (4 required)
  1. For additional information, refer to the appropriate procedure(s) .
