LH Side

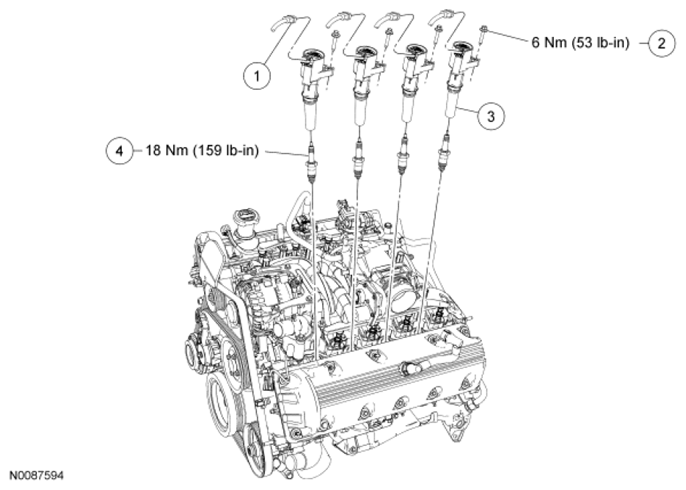

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications (LH Side)
G06564853Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 14A464 Ignition coil-on-plug electrical connector (4 required)
2 W706175 Ignition coil-on-plug bolt (4 required)
3 12A366 Ignition coil (4 required)
4 12405 Spark plug (4 required)
