Valve Spring Installed Length

NOTE: Refer to the appropriate ENGINE MECHANICAL - 4.6L (2V) article for the specification.
  1. Measure the installed length of each valve spring.

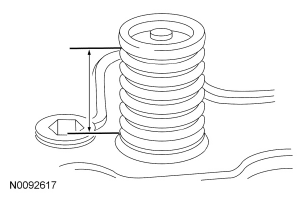

Fig 1: Identifying Dimensions Of Each Valve Spring
G07772992Courtesy of FORD MOTOR CO.
