Valve Spring Free Length

NOTE: Refer to the appropriate ENGINE MECHANICAL - 4.6L (2V) article for the specification.
  1. Measure the free length of each valve spring.

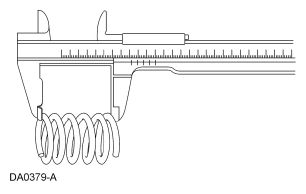

Fig 1: Measuring Free Length Of Valve Spring
G07772993Courtesy of FORD MOTOR CO.
