Child Safety Seat Tether Anchor: Notes

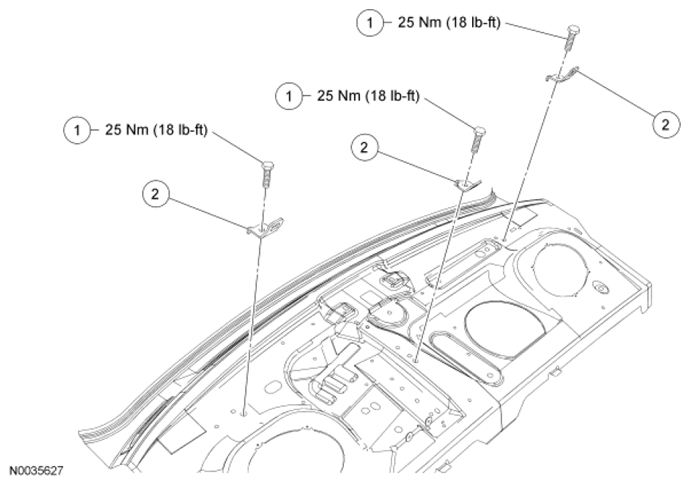

Fig 1: Identifying Child Safety Seat Tether Anchor Components
G06566742Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W506423 Child safety seat tether anchor bolts
2 613D74 Child safety seat tether anchors
