Home >> Ford >> 2009 >> RV Cutaway 6.8 S >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Fuel System >> Fuel Charging System & Fuel Control System - 6.8L >> Removal And Installation >> Fuel Pump Control Module >> Notes

Fuel Pump Control Module: Notes

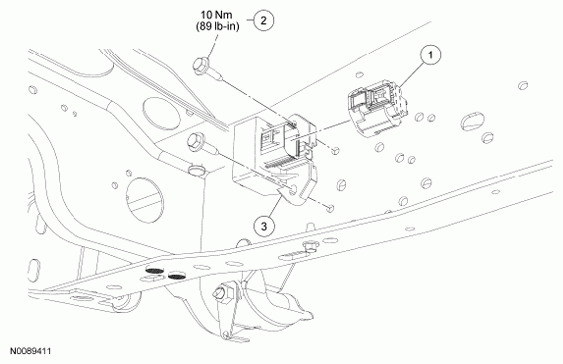

Fig 1: Fuel Pump Control Module With Torque Specifications
G06139528Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 14A464 Fuel Pump (FP) control module electrical connector (part of 14404)
2 W705549 FP  control module bolt (2 required)
3 9D412 FP  control module
