Home >> Ford >> 2009 >> RV Cutaway 6.0 P >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Diagnostic Subroutines- 6.0L Diesel >> Performance Diagnostic Procedures >> Notes

Performance Diagnostic Procedures: Notes

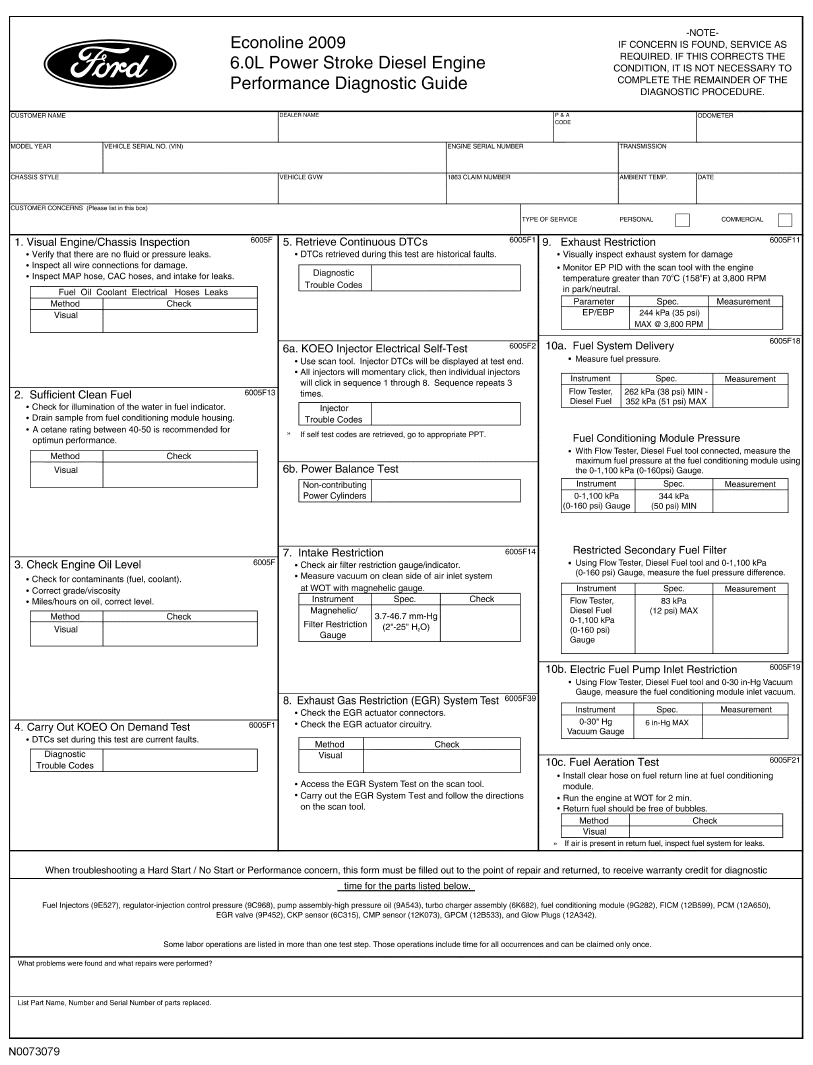

Fig 1: Performance Diagnostic Procedures Chart (1 Of 2)
G06054150Courtesy of FORD MOTOR CO.

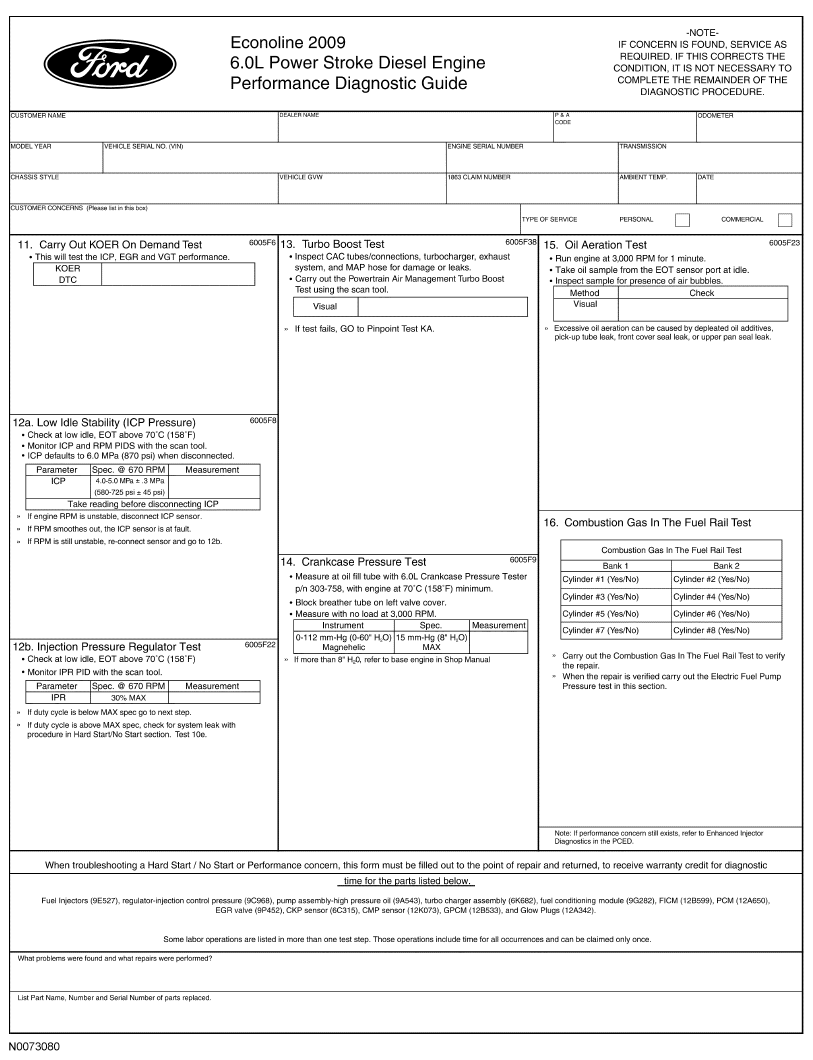

Fig 2: Performance Diagnostic Procedures Chart (2 Of 2)
G06054151Courtesy of FORD MOTOR CO.
