Trailing Arm: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

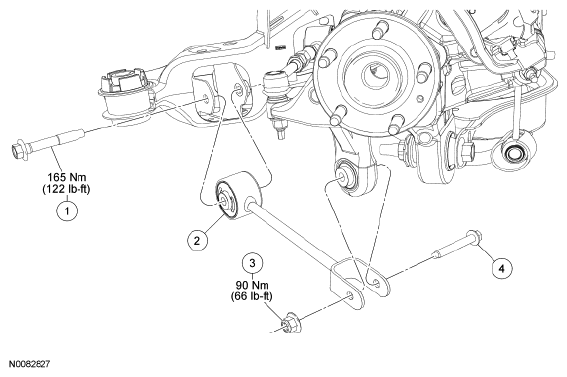

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W711114 |
Trailing arm-to-subframe bolt |
| 2 |
5B674 |
Trailing arm |
| 3 |
W707246 |
Trailing arm-to-wheel knuckle nut |
| 4 |
W500747 |
Trailing arm-to-wheel knuckle bolt |
