Transmission Range (TR) Sensor: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Alignment Tool, Transmission Range Sensor	307-571

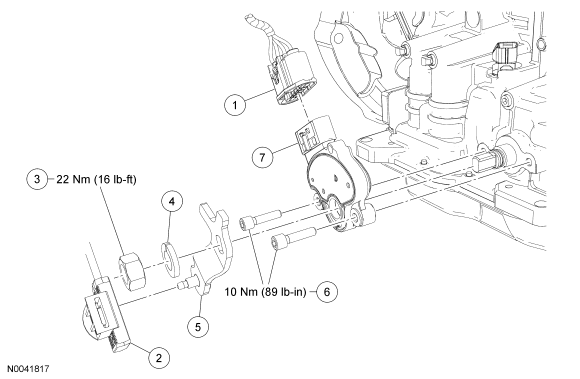

Fig 1: Exploded View Of Transmission Range (TR) Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Transmission Range (TR) sensor electrical connector
2	7E395	Selector lever cable
3	S999211400	Manual control lever nut
4	-	Lock washer
5	7A256	Manual control lever
6	W500015-S309	TR sensor bolts (2 required)
7	7F293	TR sensor
