Restraints Control Module Connectors
Restraints Control Module Connectors

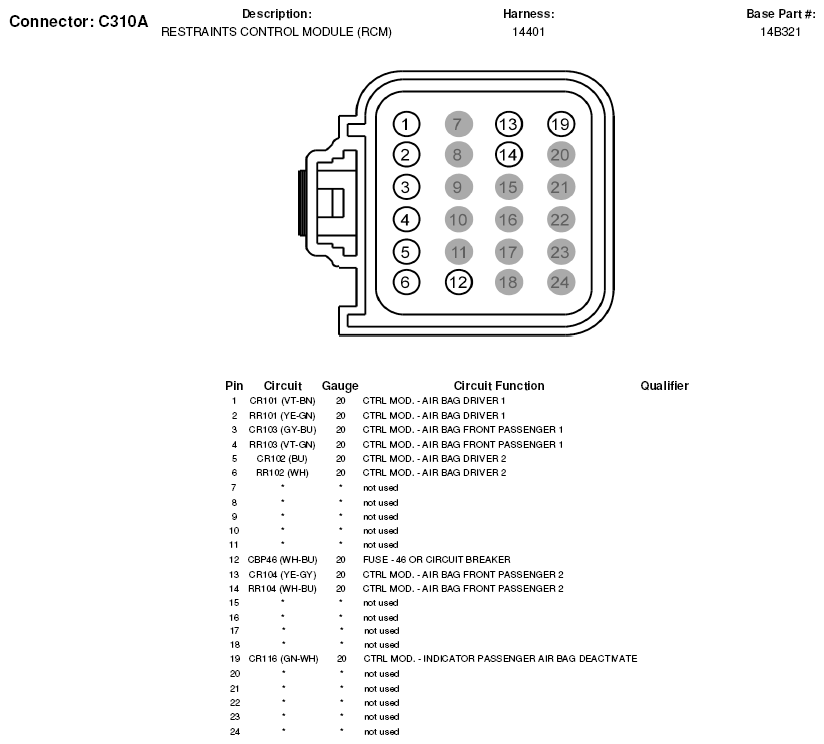

Fig 1: Restraints Control Module Connector End View (C310A)

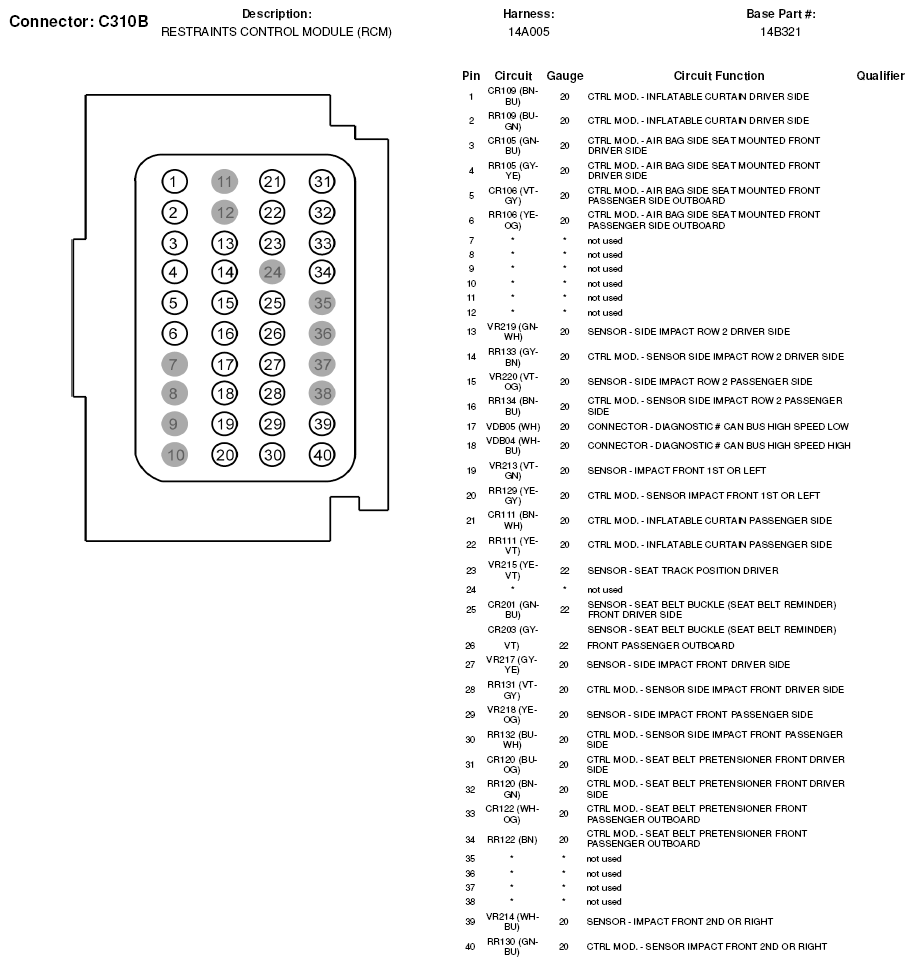

Fig 2: Restraints Control Module Connector End View (C310B)
