Home >> Ford >> 2008 >> Edge SE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Left Steering Wheel Switch Connector

Left Steering Wheel Switch Connector

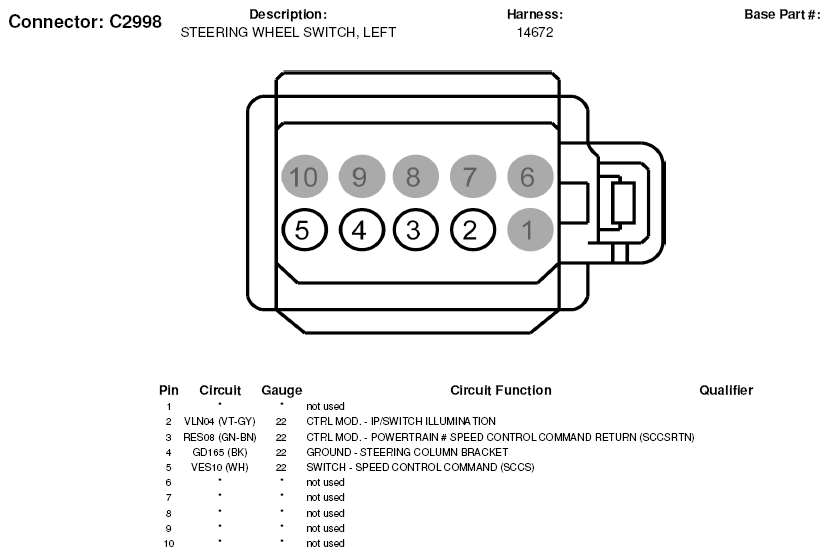

Fig 1: Left Steering Wheel Switch Connector End View (C2998)

G05599024
