Safety Belt Buckle and Pretensioner: Notes

NOTE: LH seat shown, RH seat similar.

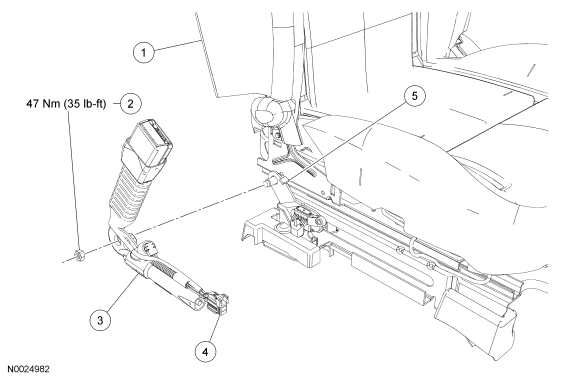

Fig 1: Safety Belt Buckle And Pretensioner Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Seat assembly
2	W707081	Nut, safety belt buckle and pretensioner
3	61202	Safety belt buckle and pretensioner
4	-	Electrical connector (part of 61202)
5	-	Anti-rotation tab
