Power Steering Fluid Reservoir: Notes

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

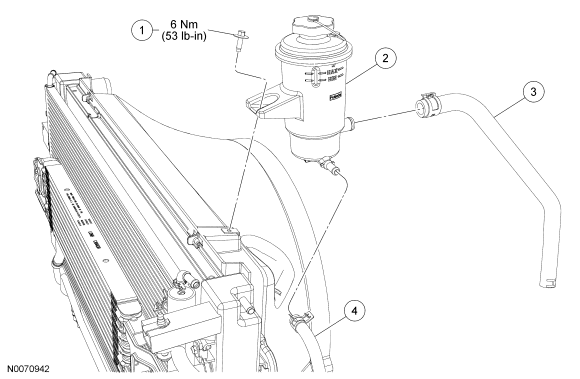

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Power steering fluid reservoir bolt
2	3E764	Power steering fluid reservoir
3	3691	Power steering fluid reservoir-to-pump supply hose
4	3A713	Power steering fluid cooler-to-power steering fluid reservoir hose
